Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Hydrocyclone Specs: | 8" |
|---|---|---|---|
| Hydrocyclone Qty: | 2pcs | Working Pressure: | 0.25-0.4Mpa |
| Inlet Diameter: | DN125mm | Outlet Diameter: | DN150mm |
| Separation Point: | 45um-75um | Bottom Shaker: | TRTS60 |
| Weight: | 620kg | Dimension: | 1510*1160*2000mm |
| Highlight: | desanding equipment,sand removal system |
||

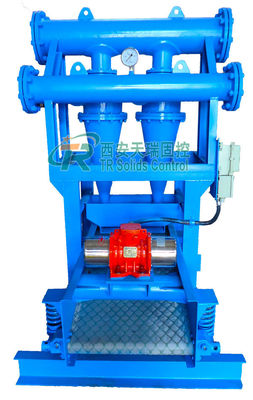

45 - 75um Separation Point Solids Control Desander Cone with 2 Hydrocyclones
Product Introduction
Design Principle
TR desander is manufactured by an advanced design, careful engineering, quality materials and finest workmanship which comprising 8, 10, and 12 inches cone diameter. Our desanders have various capacity based on its diameter.
Operation Mechanism
Desander includes two 12-inch(305-mm) diameter polyurethane hydroclones slant mounted over the shaker. Each desander clone includes four replaceable wear resistant polyurethane sections that are joined together with quick release stainless steel clamps. The desander is furnished with an 8-inch(203-mm) diameter feed manifold and a 10-inch (254-mm) diameter discharge manifold and a 0-60 psi (4.1-bar) pressure gauge. The desander also includes a solids discharge trough to distribute the hydroclone underflow evenly onto the screening surface.
Technical data of TRCS series desander
| Model | TRCS200-1S/2S | TRCS250-1S/2S | TRCS250-3S | TRCS300-1S/2S |
| Capacity | 60m3/120m3/h | 100m3/200m3/h | 300m3/h | 120m3/240m3/h |
| Cyclone Specs | 8” | 10” | 10” | 12” |
| Cyclone Qty | 1nos/2nos | 1nos/2nos | 3nos | 1nos/2nos |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN150mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN200mm |
| Separation Point | 45μm -75μm | |||
| Bottom Shaker | TRTS60 | TRTS60 | TRZS752 | TRZS752 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 1835*1230*1810mm |
| Weight | 570kg/620kg | 670kg/760kg | 1300kg | 1380kg |
| Remark | All desander could be customized without bottom shaker. | |||
Application
TRCS Mud Desander is widely used in tunneling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, environment protection, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
