Product Details:
Payment & Shipping Terms:
|
| Capacity: | 240m3/h | Desander Cyclone Qty: | 2nos |
|---|---|---|---|
| Desilter Qty: | 12nos | Inlet Size: | DN150mm |
| Separation Point: | 15-44um | Weight: | 1250kg |
| Desander Cyclone Specs: | 10" | Desilter Cyclone Specs: | 4" |
| Working Pressure: | 0.25-0.4Mpa | Outlet Size: | DN200mm |
| Bottom Shaker: | TRZS752 | Dimension: | 1835*1230*1810mm |
| Highlight: | mud control equipment,mud cleaner |
||

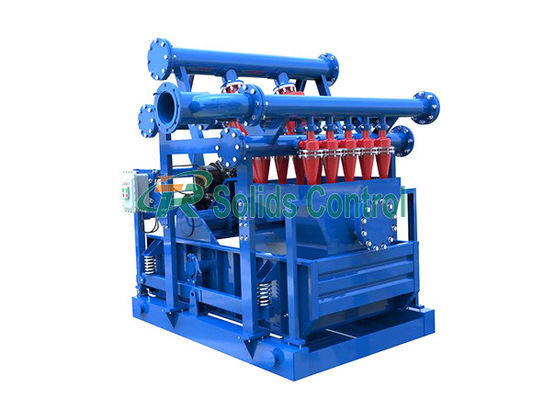

High Quality Drilling Mud Cleaner For Sale , Factory Price Mud Cleaner
Introduction
Drilling mud desander is a kind of solid control equipment, which is commonly used in oil and gas field for drilling rigs. TRQJ series drilling mud cleaner are combined from Desander, Desilter and and Underflow Screen. Our Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker.
Mud Cleaner is the second phase or the third phase solids control equipment, and it is a combination of desander, desilter and underneath shale shaker with the features of compact structure, small footprint and great efficiency. It is an ideal equipment as the second or the third phase solids control equipment.
Main Features of TRQJ Series Mud Cleaner
Specifications of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Application
Our mud cleaner is currently used in city bored piling, trenchless HDD, tunneling construction, oil & gas drilling, Drilling Waste Management, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
