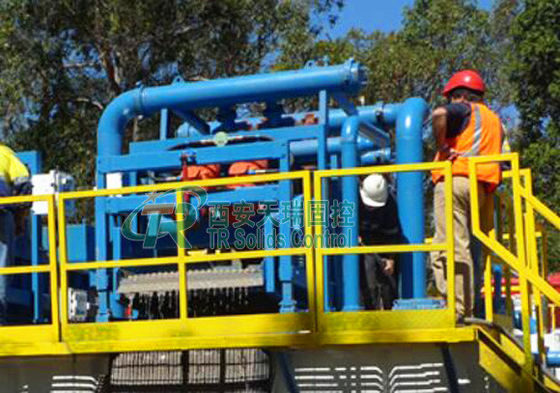

Solid Control Petroleum Mud Cleaning Equipment For Horizontal Directional Drilling

Solid Control Petroleum Mud Cleaner for Horizontal Directional Drilling

Introduction

High effective drilling mud cleaner is the second or third stage separation equipment of drilling liquid, which will handle the solids particle after being treated by the first grade separation equipment. The mud will be recovered and cuttings which are bigger than mud will be removed. Then the cuttings in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.

The integrated cleaner can integrate a group of desander and desilter on one shale shaker. The drilling fluid firstly pass the desander or desliter or desliter for separation, with overflow returning to the circulatory system and the bottom flow screened and treated by the shale shaker. If necessary, the shale shaker of the integrated cleaner could be used as the forestage shale shaker.

Key Benefits of TRQJ Series Mud Cleaner:

1. Hook-strip shaker screens for fast screens changing with screens.
2. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
3. Compact design with small footprint, with top feed and weir feed two option.
4. Mechanical Deck is adjustable during operation, reliable performance.
5. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.
6. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.

Technical Data of Our Mud Cleaner

Key Application

TR mud cleaner is mainly used in tunneling construction, city bored piling, trenchless HDD, oil & gas drilling, Drilling Waste Management, Oil Sludge Dewatering Systems, environment protection, Oil Mud Seperation, Coal Bed Gas Solids Control System, mining, Water Drilling etc. Please feel free to ask us for any inquiry of our drilling mud cleaner. We would like to provide good price and excellent service.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
