Product Details:
Payment & Shipping Terms:
|
Capacity: | 100m3/200m3/h | Hydrocyclone Specs: | 10" |
---|---|---|---|
Hydrocyclone Qty: | 1pcs/2pcs | Working Pressure: | 0.25-0.4Mpa |
Inlet Diameter: | DN150mm | Outlet Diameter: | DN200mm |
Separation Point: | 45um-75um | Weight: | 670kg/760kg |
Dimension: | 1510*1360*2250mm | Bottom Shaker: | TRZS60 |
Highlight: | desanding machine,desanding equipment |

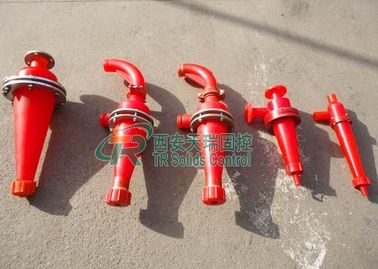

Cyclone Classifier , Cyclone Water Filter , Desander Hydro Cyclone
Product Introduction
Hydro cyclone is a separation equipment with high efficiency which utilizes centrifugal field to separate two-phase fluid, and it has been applied in classification, thickening, dewatering, desliming, separation, washing and other processes. Slurry is fed to cyclones through inlet in tangential or involute direction (depending on feeding way of the inlet head). Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from apex finder as overflow.
How does a hydrocyclone work?
Slurry or liquid mixture is fed into hydrocyclone through inlet under a certain pressure. Under centrifugal force, large particles
will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards
through inner swirling flow and be discharged from vortex finder as overflow.
Advantages of TR Desander Hydrocyclone:
Technical Data of TR Mud Desander
Model | TRCS200-1S/2S | TRCS250-1S/2S | TRCS250-3S | TRCS300-1S/2S |
Capacity | 60m3/120m3/h | 100m3/200m3/h | 300m3/h | 120m3/240m3/h |
Cyclone Specs | 8” | 10” | 10” | 12” |
Cyclone Qty | 1nos/2nos | 1nos/2nos | 3nos | 1nos/2nos |
Working Pressure | 0.25-0.4Mpa | |||
Inlet Size | DN125mm | DN150mm | DN150mm | DN150mm |
Outlet Size | DN150mm | DN200mm | DN200mm | DN200mm |
Separation Point | 45μm -75μm | |||
Bottom Shaker | TRTS60 | TRTS60 | TRZS752 | TRZS752 |
Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 1835*1230*1810mm |
Weight | 570kg/620kg | 670kg/760kg | 1300kg | 1380kg |
Remark | All desander could be customized without bottom shaker. |
Packaging & Shipping:
Regarding desander hydrocyclone package, normally we pack one roll into the strong woven bag. and then put them into big wooden case.The complete package is like below image, it is very safe when ship by sea or by air, or by train.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
