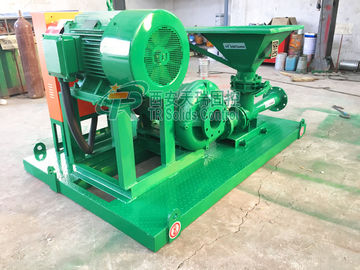

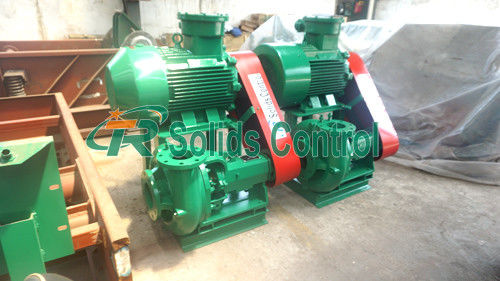

100m3/H Oilfield Drilling Shear Pump For Drilling Fluid Circulation System

100m3/h Oilfield Drilling Mud Shear Pump / Oilfield Shear Pump

Main Introduction

Drilling shear pump is one of the important equipment in the drilling fluid circulation system, mainly used to deal with chemicals and soil, and quickly attain the purpose of configuring drilling fluid. Shear pump design has a special impeller structure, which can produce a strong shear force when the liquid flows. By smashing and dispersing chemical particles, soil and other solid phase in liquid flow, so that the liquid in the solid phase broken and evenly distributed.

Our shear pump is used to handle the high property mud, making the mud to obtain good rheological properties and to cut the drilling cost as much as possible. Currently it is widely used in tunnelling construction, oil & gas drilling, city bored piling, trenchless HDD, Water Drilling, Coal Bed Gas Solids Control System, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems etc.

Design Features of TR Shear Pump

1. Oil seal adopts imported fluorine plastic seal, with good cooling capacity;
2. Pump body adopts wear-resistant alloy cast iron, longer service life;
3. Bearings use internationally renowned brands SKF, quality assured;
4. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance;
5. Mechanical seal-based, packing seal supplemented as seals combination. Material of mechanical seal is carbide alloy, its life is 5 times than normal;
6. Using special impeller and shear board, shear efficiency> 95%. Impeller material selects high chromium alloy, shear plate is made of stainless steel, with wear resistance and good corrosion resistance.

Technical Data of TRJQB Series Shear Pump

TR Solids Control is absorbed in developing our product line continuously and offering innovative solutions to our customers. Our jet mud mixers have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, service and reasonable prices.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
