Product Details:
Payment & Shipping Terms:
|
| Flow Rate: | 40m³/h | Pressure: | 0.3Mpa |
|---|---|---|---|
| Power: | 11kw | Inlet: | 5" |
| Outlet: | 5" | Ex Standard: | ExdIIBt4 |
| Weight: | 454kg | Dimension: | 3270×370×665mm |
| Highlight: | industrial screw pumps,screw displacement pump |
||

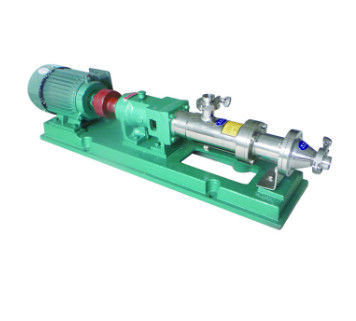

High Performance Drilling Screw Pump in Solids Control System
Introduction
Screw pump is usually used for supplying mud or slurry to centrifuge in solids control industry with the features of good feeding capacity and stable working pressure. It is the ideal choice to convey the flocculated waste drilling fluid with high viscosity and hard suspended solids because the volume change of sealed cavity formed by screw and stator sucks and discharges the fluid without drastic fluid mixing activity.
Its flow rate is proportional to the speed, widely used in food metallurgy, papermaking, printing and dyeing, chemical industry, chemical fertilizer, pharmaceutical and other industrial sectors, the transmission can be directly connected by coupling, or the use of high-speed motor, triangular belt, gearbox and other devices.G type screw pump parts less, compact structure, small volume,Simple maintenance, rotor and stator is the vulnerable parts of the pump, simple structure, easy to disassemble.
Main Features of Our Screw Pump
Technical Data of TRG Screw Pump
| Model | Flow Rate | Pressure | Power |
Inlet (Inch) |
Outlet (Inch) |
Ex Standard |
Weight (Kg) |
Dimension |
| TRG10A-040 | 10m³/h | 0.3Mpa | 4kw | 3 | 3 | ExdIIBt4/IECEX/A-TEX | 245 | 2245×320×550mm |
| TRG20A-055 | 20m³/h | 5.5kw | 3 | 3 | 323 | 2450×340×562mm | ||
| TRG30A-075 | 30m³/h | 7.5kw | 4 | 4 | 386 | 2761×370×600mm | ||
| TRG40A-110 | 40m³/h | 11kw | 5 | 5 | 454 | 3270×370×665mm | ||
| TRG50A-110 | 50m³/h | 11kw | 5 | 5 | 608 | 3790×400×782mm | ||
| TRG60A-150 | 60m³/h | 15kw | 5 | 5 | 649 | 3322×550×740mm | ||
| TRG70A-220 | 70m³/h | 22kw | 6 | 6 | 875 | 3740×420×785mm | ||
| TRG80A-220 | 80m³/h | 22kw | 6 | 6 | 875 | 3740×420×785mm | ||
| TRG90A-220 | 90m³/h | 22kw | 6 | 6 | 875 | 3740×420×785mm |
Other Properties
The best upward height reaches 8m mercury column, revolving and feeding in double directions, free to installation
Running freely, stably, with low noise, no pulse, no shear
Feeding medium temperature range: -20~+180
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
