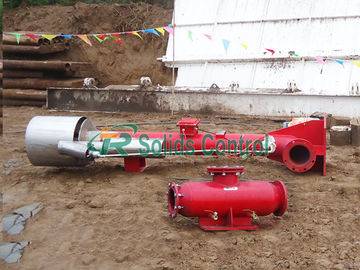

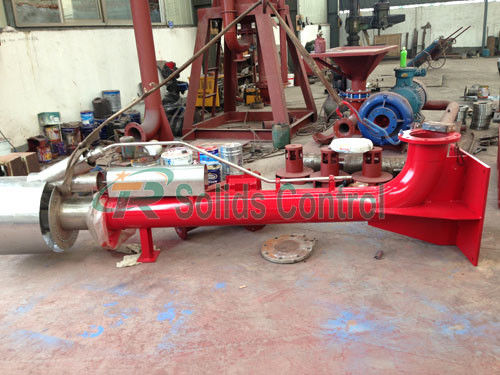

16kv DN200 Drilling Rig Electronic Ignition Device High ignition frequency and speed. AC/DC

Drilling Rig Spare Parts Solid Control System Electronic Ignition Device

Product Overview

Flare Ignition device is the security and environment friendly equipment to process the harmful Combustible gas in drilling fluids. It can be used to have the blown down harmful gas ignited and burned to prevent the environment and security from being endangered. It has been widely used in petroleum drilling engineering matched with mud gas separator.

Burning the harmful or poisonous gas by igniter will eliminate threaten to environment and safety. Every flare ignition device will be operated together with mud gas separator. They will be connected with the vent line or gas discharge line. They are widely used in oil and gas drilling at present. For each flare ignition device, we’ll configure the burner, the control panel, the joint connection, a small tank etc.

In the course of drilling, It produces harmful gas such as hydrogen sulfide. Once inhaling the gas, it will threaten the safety of life, so we need a flare ignition device to deal with these harmful gases in the drilling process to ensure the safety of the drilling site. TR Flare Ignition Device has good performance and could assure human safety to the fullest.

Properties of TRYPD Series Flare Ignition Device

1. Top part design is rain-proof with material stainless steel 304.
2. AC and DC ignition are switchable, in case low battery to unable ignition.
3. High ignition frequency and speed.
4. Electrical components are imported components.
5. Matching with solar panel to achieve the purpose of energy saving.
6. Manual ignition can be used with remote electronic ignition. Effective distance is100m to 150m.

Technical Specifications of Our Flare Ignition Device

The installation
In general, the installation ground of electronic ignition device shall be flat and firm, and the ground bolt pit shall be preset.
When installation, use crane to lift vertically with the ground, slowly put it down, and then use steel wire rope from the upper part of the main body (uniform cloth) to tighten with the ground, to ensure that the main body and the ground are vertical, casting anchor bolts, fastening see schematic diagram.

We exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company's goal.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
