Outer Diameter: | 4-1/2" ~ 20" | Working Pressure: | 21Mpa-35Mpa |
---|---|---|---|
Material: | Carbon Steel, Alloy Steel | Processing Type: | Forging |
Standard: | API, API 5CT | Connect Thread: | NC IF REG |
Usage: | Well Drilling | Warranty: | 1 Year |
Highlight: | Oilfield Casing Scrapers,Downhole Drill Spare Parts |

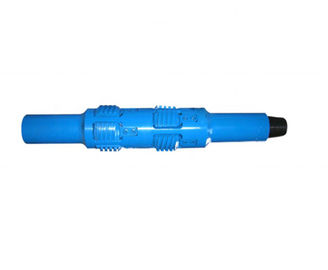

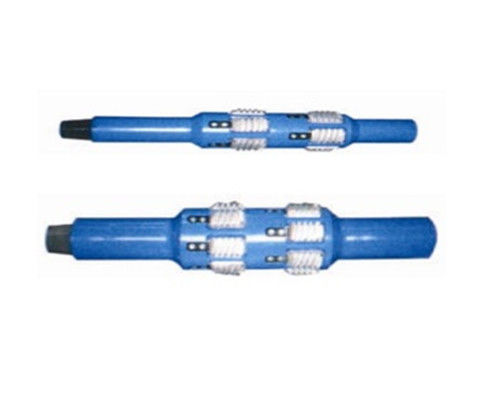

API Standard Casing Scrapers for Oilfield Downhole
Product Overview
Casing scraper is ideal for the removal of dirties which may be left inside the wall of casing, such as solid cement, hard wax, various salt crystals or deposits and rusting to ensure that all downhole tools pass through unblocked. At present scrapping inside wall of casing with scraperhas become necessary in many leading oilfields of China.
Manufactured from alloy steel and heat treated to provide strengh and durability, each scraper must pass rigid non-destructive testing to ensure the highest quality product.
Features of TR Downhole Casing Scraper:
Main Parameters of TR Oilfield Downhole Casing Scraper
Type | Mandrel O.D. (mm) | Max. O.D of blade extension (mm) | Min O.D of blade extension (mm) | Thread type | Total length (mm) |
GX114 | 92 | 111 | 92 | 2 3/8 REG | 880 |
GX127 | 103 | 121 | 103 | 2 3/8REG | 880 |
GX140 | 110 | 133 | 115 | NC31 | 1000 |
GX146 | 110 | 139 | 121 | NC31 | 1000 |
GX168 | 130 | 162 | 137 | 3 1/2REG | 1150 |
GX178 | 136 | 170 | 146 | 3 1/2REG | 1150 |
GX194 | 136 | 186 | 162 | 3 1/2REG | 1200 |
GX219 | 142 | 212 | 185 | 4 1/2REG | 1400 |
GX245 | 200 | 238 | 210 | 4 1/2REG | 1500 |
GX273 | 228 | 268 | 237 | 6 5/8REG | 1500 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
What's the order procedure?
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
