Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1070 X 570 X 22 Mm | Mesh: | API 20-API 325 |
|---|---|---|---|
| Layers: | 2-3 Layers | Weight: | 9 Kg |
| Series: | DX, DF, HP Optional | Material: | S.S316L |
| Highlight: | SS316L Shaker Screens,API 20 Shaker Screens,Wave Shaker Screen |
||
Shaker Screens for HYP Series Shaker
Product Overview

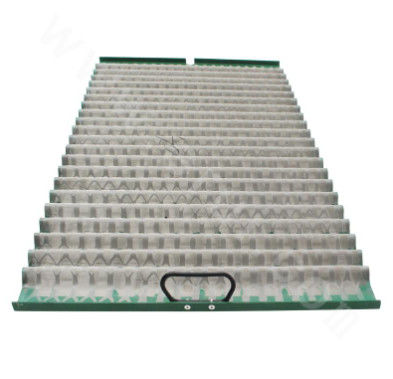

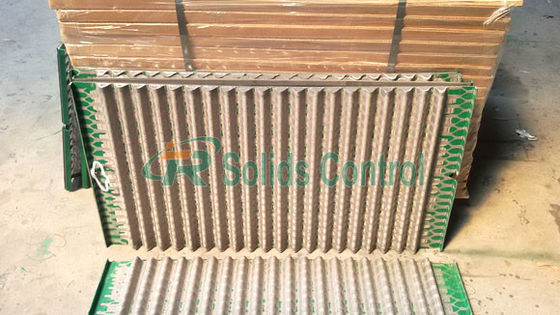

The screen surface of wave shaker screen is the unique wavy, installation type can be hookstrip or steel frame wedge pressuring device. The effective filter area of wave screen can be 125% to 150% of the same mode flat screen, the treating capacity is increased. Our manufacture can manufacture many variety of specifications wave screen according to customers requirements.
Competitive Advantges
Performance Parameters of Replacement HYP Shaker Screen
| Screen Designation | Mesh Type | API RP 13C Designation | Conductance Number | D100 Separation (microns) |
Layer No.
|
Non-blank area (sq.ft) |
| DH-A325 | DX | API 325 | 0.39 | 44 | 2/3 | 5.66 |
| DH-A270 | DX | API 270 | 0.67 | 57 | 2/3 | 5.66 |
| DH-A230 | DX | API 230 | 0.71 | 68 | 2/3 | 5.66 |
| DH-A200 | DX | API 200 | 1.32 | 73 | 2/3 | 5.66 |
| DH-A170 | DX | API 170 | 1.34 | 83 | 2/3 | 5.66 |
| DH-A140 | DX | API 140 | 1.89 | 101 | 2/3 | 5.66 |
| DH-A120 | DX | API 120 | 1.89 | 134 | 2/3 | 5.66 |
| DH-A100 | DX | API 100 | 2.66 | 164 | 2/3 | 5.66 |
| DH-A80 | DX | API 80 | 2.76 | 193 | 2/3 | 5.66 |
| DH-A70 | DX | API 70 | 3.33 | 203 | 2/3 | 5.66 |
| DH-A60 | DX | API 60 | 4.1 | 268 | 2/3 | 5.66 |
| DH-A50 | DX | API 50 | 5.17 | 285 | 2/3 | 5.66 |
| DH-A40 | DX | API 40 | 8.64 | 439 | 2/3 | 5.66 |
| DH-A35 | DX | API 35 | 9.69 | 538 | 2/3 | 5.66 |
| DH-A20 | DX | API 20 | 10.88 | 809 | 2/3 | 5.66 |
|
* D100: Particles this size and larger will normally be discarded. * API: Corresponding API sieve equivalent as per API RP 13C. * Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing. |
||||||
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
