Product Details:
Payment & Shipping Terms:
|
| Thickness: | 8.56 - 16.66 Mm | Warranty: | 12 Months |
|---|---|---|---|
| Package: | Wooden Case | Size: | 4-1/2-103/4 |
| Certificate: | ISO9001,ISO14000,ISO18000 | Connectiong Threads: | FJWP |
| Material: | Alloy Steel | ID: | 97.18-247.91 |
| Highlight: | FJWP Washover Shoe,Oilfield Downhole Washover Shoe,Alloy Steel Washover Shoe |
||

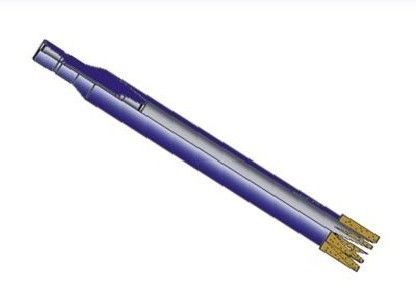

Connection FJWP Washover Shoe for Oilfield Downhole
Product Overview
When a fish is difficult to grip, a washover pipe or washpipe is used. Made of large-diameter pipe with a cutting surface at the tip, washpipe is run in the well and then the cutting edge grinds the fish to a smooth surface. Then drilling fluids are pumped into the well to remove debris, and another tool is used to retrieve the remaining fish.

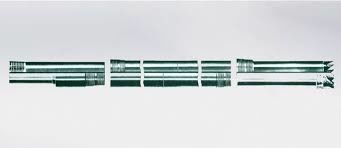

The washover pipe is a kind of tool for special purposed to solve sticking pipe. The wash over pipe adopt two-step thread(FJWP) as connect thread. It is hight tensile strength, non-interference threads, is made of high strength pipe and fast shackle, seal reliable.
Our products Including below series with full model types:
Solid control equipment: shale shaker, decanter centrifuge, mud cleaner etc.
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Technical Information of Our Washover Pipe
| TYPE |
O.D mm |
I.D mm |
Min O.D Of using mm |
Diameter of the fish To be Cut mm |
Max.Tensile Load kN |
Max. Working TorqueN•m |
Sealing Pressure MPa |
| TXG114.30-8.56 | 114.30 | 97.18 | 120.65 | 80.90 | 390 | 9490 | 20 |
| TXG127-9.19 | 127.00 | 108.62 | 146.05 | 101.60 | 440 | 12202 | 20 |
| TXG139.70-9.17 | 139.70 | 121.36 | 152.4 | 117.48 | 500 | 14914 | 20 |
| TXG146.05-7.92 | 146.05 | 130.21 | 161.93 | 127.00 | 500 | 14914 | 20 |
| TXG146.05-9.00 | 146.05 | 128.05 | 161.93 | 120.65 | 560 | 16269 | 20 |
| TXG168.28-8.94 | 168.28 | 150.39 | 187.33 | 142.88 | 600 | 21693 | 15 |
| TXG177.80-9.19 | 177.80 | 159.42 | 200.03 | 152.40 | 640 | 24404 | 15 |
| TXG193.68-9.53 | 193.68 | 174.63 | 212.73 | 168.28 | 700 | 31183 | 15 |
| TXG193.68-10.92 | 193.68 | 171.83 | 212.73 | 165.10 | 810 | 36607 | 15 |
| TXG193.68-12.70 | 193.68 | 168.28 | 212.73 | 161.93 | 1060 | 43386 | 15 |
| TXG203.20-9.53 | 203.20 | 184.15 | 215.90 | 177.00 | 820 | 32539 | 15 |
| TXG206.38-9.40 | 206.38 | 187.58 | 215.90 | 177.80 | 830 | 32539 | 15 |
| TXG219.07-11.43 | 219.07 | 196.21 | 244.48 | 187.33 | 1100 | 47453 | 15 |
| TXG219.07-12.70 | 219.07 | 193.67 | 244.48 | 184.15 | 1220 | 54232 | 15 |
| TXG228.60-10.80 | 228.60 | 207.01 | 250.83 | 200.03 | 1260 | 47453 | 15 |
| TXG244.48-11.99 | 244.48 | 220.50 | 266.70 | 212.73 | 1450 | 67791 | 15 |
| TXG244.48-13.84 | 244.48 | 216.80 | 266.70 | 206.37 | 1560 | 81349 | 15 |
| TXG273.05-11.43 | 273.05 | 250.19 | 290.45 | 238.13 | 1620 | 81349 | 15 |
| TXG273.05-12.57 | 273.05 | 247.91 | 298.45 | 234.95 | 1640 | 88128 | 15 |
| TXG298.44-12.42 | 298.44 | 273.60 | 323.85 | 263.53 | 1800 | 108465 | 10 |
| TXG339.72-13.06 | 339.72 | 313.60 | 365.13 | 301.62 | 2020 | 149140 | 10 |
| TXG406.40-16.66 | 406.40 | 373.08 | 444.50 | 355.60 | 2500 | 254894 | 7.0 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.
Our company has always focused on research, development and innovation. We will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
