Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2"-17 1/2" | Thread: | 2 3/8" Reg |
|---|---|---|---|
| Material: | Carbide | Processing Type: | Forging/Casting |
| Color: | Blue, Green, White | Package: | Pallet |
| Pressure Loss: | 3.2 To 4.0 Mpa | Bit Speed: | 185-430 R/m |
| Highlight: | Downhole Screw Oil Drilling Motor,430r/M Oil Drilling Motor,4.0Mpa Oil Drilling Motor |
||

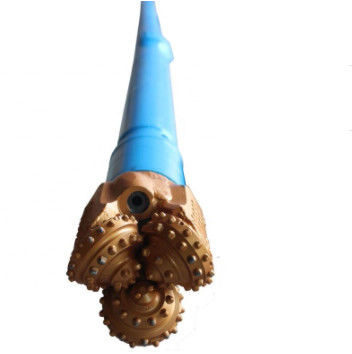

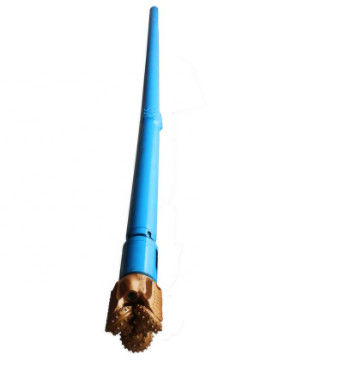

API Oil Drilling Motors / Downhole Screw Motors Lobe 5:6
Product Descrption

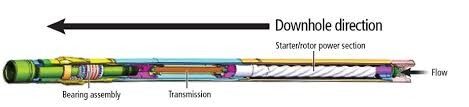

Downhole motor is a positive displacement downhole power drilling tool, which is powered by drilling fluid and coverting fluid pressure into mechanical energy. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss between inlet and outlet of the motor to push the motor rotating around the stator's axis, then transmits rotation speed and torque to the bit by universal shaft and drive shaft to implement the well operation.
Benefits of Oilfield Downhole/Mud Motor
Main Specifications
We can supply various sizes of downhole motors for hole size from 1 7/8” to 26”. Popular size are 1 11/16”, 2 1/8”,2 3/8”,2 7/8”,3 1/8”,3 1/2”,3 3/4”,4”,4 3/4”,5”,5 5/16”,5 7/8”,6 1/4”,6 1/2”,6 3/4”,7”,7 1/4”,7 3/4”,8”,8 1/2”,9”, 9 5/8”and 11 1/4”. We’re able to provide downhole motors of vertical, single-bend, double-bend and adjustable motors; the hear-resistance temperature ranges are ≤120℃,120-150℃ and 150-180℃; oil-based mud resistance and saturated saltwater mud resistance motors and can supply various size of uniform thickness downhole motors.
Technical Information of Our Downhole/Mud Motor
| Item No | Hole Size |
Input Flow Rate |
Pressure Loss |
Bit Speed |
Working Torque |
Delay Dynamic Torque |
Output Power |
Max Drilling Weight |
Joint Thread | Length | ||
| Unit | mm | In | L/S | Mpa | r/min | N.m | N.m | KW | KN | In | In | mm |
| 5LZ73×7.0 | 83-121 | 3 1/4-4 3/4 | 2-4 | 3.2 | 80-160 | 615 | 1077 | 5.8-11.5 | 25 | 2 3/8REG | 2 3/8REG | 3423 |
| 9LZ89×7.0 | 105-143 | 4 1/8-5 5/8 | 3-8 | 3.2 | 147-392 | 504 | 882 | 8.64-23 | 30 | 2 7/8REG | 2 7/8REG | 2911 |
| 5LZ95×7.0 | 114-150 | 4 1/8-5 7/8 | 5-12 | 3.2 | 140-320 | 710 | 1240 | 10.5-25 | 40 | 2 7/8REG | 2 7/8REG | 3920 |
| 5LZ120×7.0 | 152-200 | 6-7 7/8 | 8-16 | 3.2 | 80-180 | 1850 | 3200 | 23-47 | 106 | 3 1/2REG | 3 1/2REG | 5039 |
| 5LZ165×7.0V | 245-244 | 8 1/8-9 5/8 | 18-30 | 3.2 | 111-167 | 4440 | 7770 | 57.6-86.4 | 160 | 4 1/2REG | 4 1/2REG | 7408 |
| 5LZ165.5×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 180 | 4 1/2REG | 4 1/2REG | 7748 |
| 5LZ172×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 180 | 4 1/2REG | 4 1/2REG | 7391 |
| 5LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 115-180 | 6452 | 11299 | 86.4-151.2 | 200 | 4 1/2REG | 4 1/2REG | 8031 |
| 7LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 75-180 | 6527 | 11420 | 59.5-108.6 | 160 | 4 1/2REG | 4 1/2REG | 8631 |
| 5LZ185×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 184 | 5436 | 8154 | 80-140 | 240 | 4 1/2REG | 6 1/2REG | 8120 |
| 5LZ185.5×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 173 | 5939 | 8908 | 80-140 | 240 | 4 1/2REG | 6 1/2REG | 8120 |
| 5LZ197×7.0 | 244-311 | 9 1/8-12 5/8 | 20-40 | 3.2 | 61-122 | 14118 | 14118 | 57.6-115.2 | 240 | 5 1/2REG | 6 5/8REG | 7998 |
| 5LZ197.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4.0 | 85-160 | 12640 | 12640 | 72-144 | 260 | 5 1/2REG | 6 5/8REG | 8598 |
| 7LZ203×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 3.2 | 70-155 | 12289 | 12289 | 57.6-126.7 | 240 | 5 1/2REG | 6 5/8REG | 7798 |
| 5LZ203.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4.0 | 70-155 | 8778 | 15362 | 72-158.4 | 260 | 5 1/2REG | 6 5/8REG | 8598 |
| 5LZ244×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 3.2 | 91-136 | 15124 | 26468 | 144-216 | 360 | 6 5/8REG | 7 5/8REG | 8635 |
| 7LZ244.5×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 4.0 | 91-136 | 18905 | 33085 | 180-270 | 450 | 6 5/8REG | 7 5/8REG | 9235 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010, is a professional technology-oriented enterprise specialized in the production of solid control equipment and drilling tools. And it is one of the leading corporations of drilling tools and equipment in China. The products mainly include the following series, as follows:
Solid Control Equipment: shale shaker, mud cleaner, decanter centrifuge, mdu agitator, centrifugal pump.
Drilling Bit series: rock roller bit, tricone bit, palm bit, pdc drill bit, single bit, cone bit and hole opener.
Drilling Equipment Parts series: downhole motor,manual tong,elevator, slips, stabilizer；kell bush,hook blocks,swivels and high pressure hose.
Our commitment to provide you with the highest quality products is reflected in our ISO 9001 certification. We put quality at the heart of everything we do, at every step of our manufacturing and sales processes. Every year our quality control standards and performance levels are rigorously assessed to ensure we continue to meet the toughest international standards.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
