4 3/4" Horizontal Directional Drilling Downhole Motor 291rpm

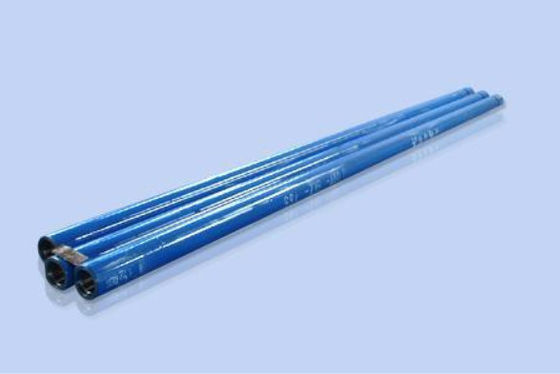

4 3/4" Downhole Motor for Horizontal Directional Drilling

Product Descrption

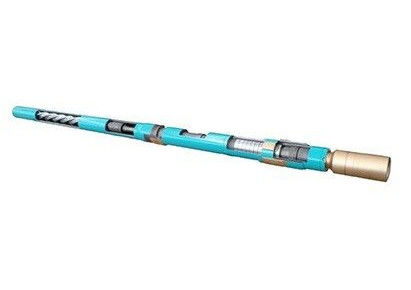

Downhole motor is a positive displacement downhole power drilling tool, which is powered by drilling fluid and coverting fluid pressure into mechanical energy. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss between inlet and outlet of the motor to push the motor rotating around the stator's axis, then transmits rotation speed and torque to the bit by universal shaft and drive shaft to implement the well operation.

TR downhole motor can work around 200 hours for one running in general and working life of the power section has reached more than 1,000 hours. Our company is able to provide all sizes and configurations of the downhole motor. We provide specific design products according to the customer's requirements for the torque, displacement, well temperature and other parameters.

Unifrom Thickness

Reasonable to change the shape of stator housing, the stator elastomer layer of Unifrom Thickness downhole motor is thin and even. The characteristics of the downhole motor are short length, high power, high pressure drop, low rotate speed, high cooling efficiency, even thermal expansion, more widely used, more optimized structure and the lighter mass. Especially, the characteristics can prolong downhole motor's life and improve drilling efficiency in the ultra-deep well, directional well and high temperature well.



Main Specifications

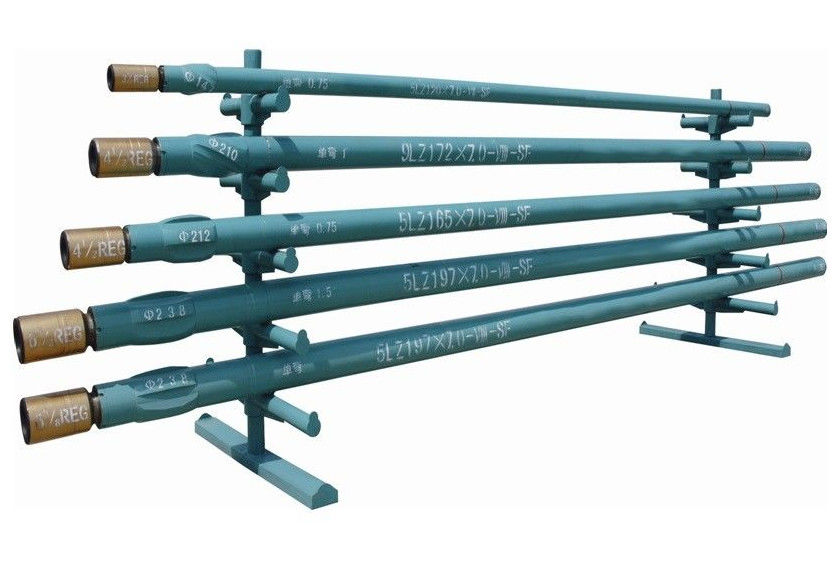

We can supply various sizes of downhole motors for hole size from 1 7/8” to 26”. Popular size are 1 11/16”, 2 1/8”,2 3/8”,2 7/8”,3 1/8”,3 1/2”,3 3/4”,4”,4 3/4”,5”,5 5/16”,5 7/8”,6 1/4”,6 1/2”,6 3/4”,7”,7 1/4”,7 3/4”,8”,8 1/2”,9”, 9 5/8”and 11 1/4”. We’re able to provide downhole motors of vertical, single-bend, double-bend and adjustable motors; the hear-resistance temperature ranges are ≤120℃,120-150℃ and 150-180℃; oil-based mud resistance and saturated saltwater mud resistance motors and can supply various size of uniform thickness downhole motors.



Technical Specifications of Our Downhole/Mud Motor



Item No	Hole Size		Input Flow Rate	Pressure Loss	Bit Speed	Working Torque	Delay Dynamic Torque	Output Power	Max Drilling Weight	Joint Thread		Length
Unit	mm	In	L/S	Mpa	r/min	N.m	N.m	KW	KN	In	In	mm
5LZ73×7.0	83-121	3 1/4-4 3/4	2-4	3.2	80-160	615	1077	5.8-11.5	25	2 3/8REG	2 3/8REG	3423
9LZ89×7.0	105-143	4 1/8-5 5/8	3-8	3.2	147-392	504	882	8.64-23	30	2 7/8REG	2 7/8REG	2911
5LZ95×7.0	114-150	4 1/8-5 7/8	5-12	3.2	140-320	710	1240	10.5-25	40	2 7/8REG	2 7/8REG	3920
5LZ120×7.0	152-200	6-7 7/8	8-16	3.2	80-180	1850	3200	23-47	106	3 1/2REG	3 1/2REG	5039
5LZ165×7.0V	245-244	8 1/8-9 5/8	18-30	3.2	111-167	4440	7770	57.6-86.4	160	4 1/2REG	4 1/2REG	7408
5LZ165.5×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7748
5LZ172×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7391
5LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	115-180	6452	11299	86.4-151.2	200	4 1/2REG	4 1/2REG	8031
7LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	75-180	6527	11420	59.5-108.6	160	4 1/2REG	4 1/2REG	8631
5LZ185×7.0	215-244	8 1/8-9 5/8	20-35	4.0	184	5436	8154	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ185.5×7.0	215-244	8 1/8-9 5/8	20-35	4.0	173	5939	8908	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ197×7.0	244-311	9 1/8-12 5/8	20-40	3.2	61-122	14118	14118	57.6-115.2	240	5 1/2REG	6 5/8REG	7998
5LZ197.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	85-160	12640	12640	72-144	260	5 1/2REG	6 5/8REG	8598
7LZ203×7.0	244-311	9 5/8-12 1/4	20-40	3.2	70-155	12289	12289	57.6-126.7	240	5 1/2REG	6 5/8REG	7798
5LZ203.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	70-155	8778	15362	72-158.4	260	5 1/2REG	6 5/8REG	8598
5LZ244×7.0	311-445	12 1/2-17 1/2	50-75	3.2	91-136	15124	26468	144-216	360	6 5/8REG	7 5/8REG	8635
7LZ244.5×7.0	311-445	12 1/2-17 1/2	50-75	4.0	91-136	18905	33085	180-270	450	6 5/8REG	7 5/8REG	9235



Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010, located in Xi'an, China. We produce HDD rock cutter, soil sand reamers, mud solid control system(including mud mixer, mud tank, mud cleaner, shale shaker, desander, desilter), sewage treatment system, municipal sewage treatment system and ect. Accoranding constantly develop, we are known of brand suppliers, we adhering to "to forge ahead ","to be top ","to do the best" enterprise concept, people-oriented, and to service to create value, supply satisfactory product to globle more than 200 customers. We consciously integrate social responsibility into production and management activities, develop green machinery products, and protect environmental resources. TR always keeping to the steady management, creating golden brand, making master style. TR is pleasure to work with colleagues to create supreme future!



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
