120mm Carbide Oilfield Downhole Mud Motor Forging

Oilfield Downhole Tools Mud Motor with Size 120 mm

Product Descrption

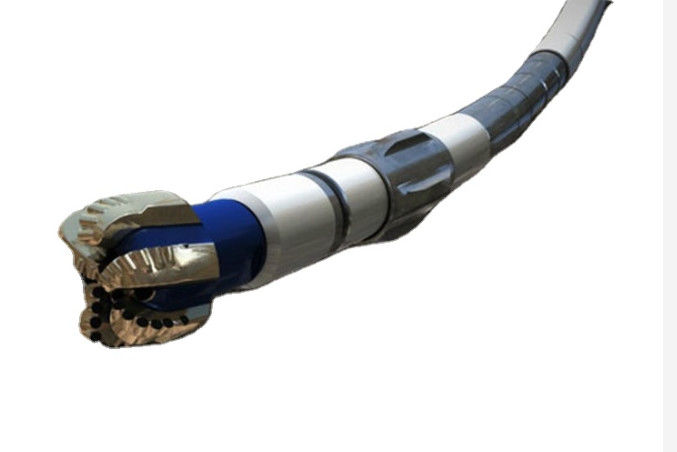

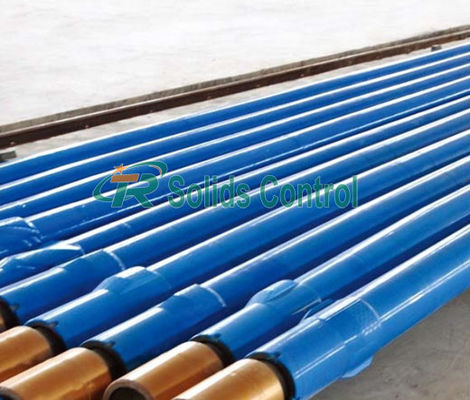

The downhole motor is a kind of mud-driving down hole drilling tool. The mud from the mud pump goes through the bypass valve and enters the motor. At the gate of the motor it forms pressure difference to rotate the motor’s rotator and to pass the drilling rigs through the cardan and transmission shaft. The performance of the downhole motor is mainly determined by the parameters of the motor.

TR downhole motor can work around 200 hours for one running in general and working life of the power section has reached more than 1,000 hours. Our company is able to provide all sizes and configurations of the downhole motor. We provide specific design products according to the customer's requirements for the torque, displacement, well temperature and other parameters.

Reasonable to change the shape of stator housing, the stator elastomer layer of Uniform Thickness downhole motor is thin and even. The characteristics of the downhole motor are short length, high power, high pressure drop, low rotate speed, high cooling efficiency, even thermal expansion, more widely used, more optimized structure and the lighter mass. Especially, the characteristics can prolong downhole motor's life and improve drilling efficiency in the ultra-deep well, directional well and high temperature well.

Product Specifications

We can supply various sizes of downhole motors for hole size from 1 7/8” to 26”. Popular size are 1 11/16”, 2 1/8”,2 3/8”,2 7/8”,3 1/8”,3 1/2”,3 3/4”,4”,4 3/4”,5”,5 5/16”,5 7/8”,6 1/4”,6 1/2”,6 3/4”,7”,7 1/4”,7 3/4”,8”,8 1/2”,9”, 9 5/8”and 11 1/4”. We’re able to provide downhole motors of vertical, single-bend, double-bend and adjustable motors; the hear-resistance temperature ranges are ≤120℃,120-150℃ and 150-180℃; oil-based mud resistance and saturated saltwater mud resistance motors and can supply various size of uniform thickness downhole motors.



Technical Parameters of Our Downhole/Mud Motor



Item No	Hole Size		Input Flow Rate	Pressure Loss	Bit Speed	Working Torque	Delay Dynamic Torque	Output Power	Max Drilling Weight	Joint Thread		Length
Unit	mm	In	L/S	Mpa	r/min	N.m	N.m	KW	KN	In	In	mm
5LZ73×7.0	83-121	3 1/4-4 3/4	2-4	3.2	80-160	615	1077	5.8-11.5	25	2 3/8REG	2 3/8REG	3423
9LZ89×7.0	105-143	4 1/8-5 5/8	3-8	3.2	147-392	504	882	8.64-23	30	2 7/8REG	2 7/8REG	2911
5LZ95×7.0	114-150	4 1/8-5 7/8	5-12	3.2	140-320	710	1240	10.5-25	40	2 7/8REG	2 7/8REG	3920
5LZ120×7.0	152-200	6-7 7/8	8-16	3.2	80-180	1850	3200	23-47	106	3 1/2REG	3 1/2REG	5039
5LZ165×7.0V	245-244	8 1/8-9 5/8	18-30	3.2	111-167	4440	7770	57.6-86.4	160	4 1/2REG	4 1/2REG	7408
5LZ165.5×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7748
5LZ172×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7391
5LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	115-180	6452	11299	86.4-151.2	200	4 1/2REG	4 1/2REG	8031
7LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	75-180	6527	11420	59.5-108.6	160	4 1/2REG	4 1/2REG	8631
5LZ185×7.0	215-244	8 1/8-9 5/8	20-35	4.0	184	5436	8154	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ185.5×7.0	215-244	8 1/8-9 5/8	20-35	4.0	173	5939	8908	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ197×7.0	244-311	9 1/8-12 5/8	20-40	3.2	61-122	14118	14118	57.6-115.2	240	5 1/2REG	6 5/8REG	7998
5LZ197.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	85-160	12640	12640	72-144	260	5 1/2REG	6 5/8REG	8598
7LZ203×7.0	244-311	9 5/8-12 1/4	20-40	3.2	70-155	12289	12289	57.6-126.7	240	5 1/2REG	6 5/8REG	7798
5LZ203.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	70-155	8778	15362	72-158.4	260	5 1/2REG	6 5/8REG	8598
5LZ244×7.0	311-445	12 1/2-17 1/2	50-75	3.2	91-136	15124	26468	144-216	360	6 5/8REG	7 5/8REG	8635
7LZ244.5×7.0	311-445	12 1/2-17 1/2	50-75	4.0	91-136	18905	33085	180-270	450	6 5/8REG	7 5/8REG	9235





Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of solid control equipment and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include solid control equipment, cement tools, PDC drilling bits, Wellheading tools, Mud pumps and their acceossries.



Our commitment to provide you with the highest quality products is reflected in our ISO 9001 certification. We put quality at the heart of everything we do, at every step of our manufacturing and sales processes. Every year our quality control standards and performance levels are rigorously assessed to ensure we continue to meet the toughest international standards.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
