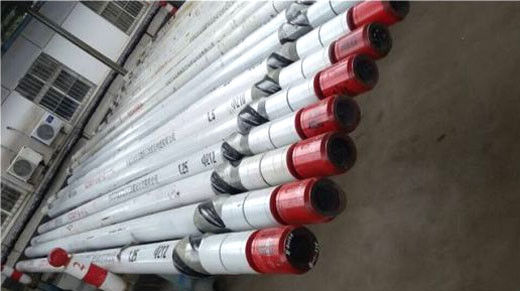

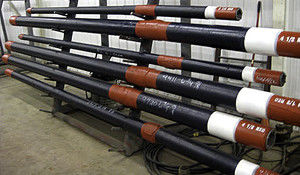

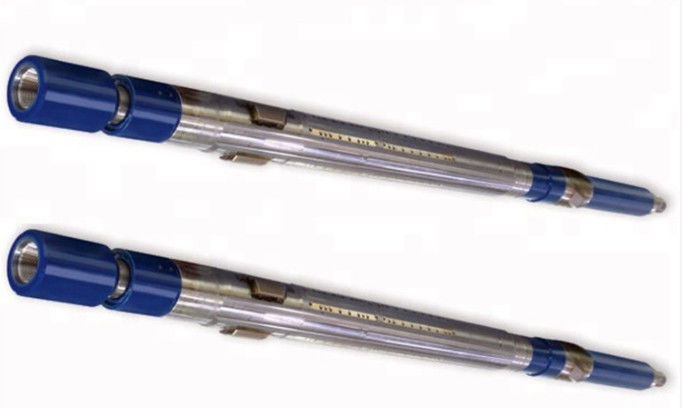

PDM Thread Drill Spare Parts Directional Drilling Mud Motors 286mm

Oilfield Directional Drilling Mud Motors 43mm-286mm

Product Overview

Downhole Mud Motors, also called Positive-Displacement Motors (PDM), make use of a power generation section which is made up of a rotor/stator combination. In order to move a rotor part, a PDM requires hydraulic power from drilling fluid flowing through the power generation part. With a PDM, the stator and rotor work in tandem in the same way that gears do. The stator acts as the outer gear, and is made from a moulded elastomer featuring at least two lobes. The OD of the elastomer is protected by a secure metal casing. The rotor is positioned within the stator, and acts as an internal gear. This rotor is made of metal, and will have one less gear or lobe than the stator. Because of this difference, a cavity is created which is filled with drilling fluid when the PDM is downhole. This cavity acts as a wedge when it is put under pressure, and because the drilling fluid itself can’t be compressed, the force applied to the top of the wedge causes the rotor to move.

We can produce series of downhole motors in different sizes, as Φ57(21/4"),Φ73(23/4"),Φ89(31/2"),Φ95(33/4"),Φ120(43/4"),Φ127(5"),Φ165(61/2"),Φ172(63/4"),Φ178(7"),Φ185(71/4"),Φ197(73/4"),Φ203(8"),Φ216(81/2"),Φ244(95/8"), etc.



Types & Capabilities

In accordance with the actual drilling needs, we push out high, midiem and low speed downhole motors, of a variety of types with different functional configuration and application for all working conditions.
1. Standard type Standard motor, mud lubricating transmission shaft, straight, single and double bent.
2. Long type The torque is increased by 30%to 60%than standard ones, mud lubricating transmission shaft, straight, single and double bent.
3. High flow rate type The adoption of hollow rotor and different sizes of hard alloy jet nozzle to increase the incoming flow and bit power.
4.High deflection type The unique structure design makes the overall length shorter and bent housing closer to the bit, deflection rate reach up to 1/m, so as to keep good working conditions.
5. High temperature resistance type The motor stator is made of superior quality high temperature resistant rubber, which enables the motor to perform stably in the well bottom at max. 175 C.



Main Specification of Our Downhole/Mud Motor



Item No	Hole Size		Input Flow Rate	Pressure Loss	Bit Speed	Working Torque	Delay Dynamic Torque	Output Power	Max Drilling Weight	Joint Thread		Length
Unit	mm	In	L/S	Mpa	r/min	N.m	N.m	KW	KN	In	In	mm
5LZ73×7.0	83-121	3 1/4-4 3/4	2-4	3.2	80-160	615	1077	5.8-11.5	25	2 3/8REG	2 3/8REG	3423
9LZ89×7.0	105-143	4 1/8-5 5/8	3-8	3.2	147-392	504	882	8.64-23	30	2 7/8REG	2 7/8REG	2911
5LZ95×7.0	114-150	4 1/8-5 7/8	5-12	3.2	140-320	710	1240	10.5-25	40	2 7/8REG	2 7/8REG	3920
5LZ120×7.0	152-200	6-7 7/8	8-16	3.2	80-180	1850	3200	23-47	106	3 1/2REG	3 1/2REG	5039
5LZ165×7.0V	245-244	8 1/8-9 5/8	18-30	3.2	111-167	4440	7770	57.6-86.4	160	4 1/2REG	4 1/2REG	7408
5LZ165.5×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7748
5LZ172×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7391
5LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	115-180	6452	11299	86.4-151.2	200	4 1/2REG	4 1/2REG	8031
7LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	75-180	6527	11420	59.5-108.6	160	4 1/2REG	4 1/2REG	8631
5LZ185×7.0	215-244	8 1/8-9 5/8	20-35	4.0	184	5436	8154	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ185.5×7.0	215-244	8 1/8-9 5/8	20-35	4.0	173	5939	8908	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ197×7.0	244-311	9 1/8-12 5/8	20-40	3.2	61-122	14118	14118	57.6-115.2	240	5 1/2REG	6 5/8REG	7998
5LZ197.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	85-160	12640	12640	72-144	260	5 1/2REG	6 5/8REG	8598
7LZ203×7.0	244-311	9 5/8-12 1/4	20-40	3.2	70-155	12289	12289	57.6-126.7	240	5 1/2REG	6 5/8REG	7798
5LZ203.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	70-155	8778	15362	72-158.4	260	5 1/2REG	6 5/8REG	8598
5LZ244×7.0	311-445	12 1/2-17 1/2	50-75	3.2	91-136	15124	26468	144-216	360	6 5/8REG	7 5/8REG	8635
7LZ244.5×7.0	311-445	12 1/2-17 1/2	50-75	4.0	91-136	18905	33085	180-270	450	6 5/8REG	7 5/8REG	9235





Xi'An TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.



The company possesses excellent office environment, specialized technology, business and management team. In the course of future development, the company will continue to enhance product quality and technical service management. We are committed to build the company into a international first-class "one stop" comprehensive oil drilling products supplier and service providers, providing each customer in the world with high quality & affordable products and professional & perfect service!



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
