| Size: | 1-3/4", 2-1/2",2-3/4",3-1/2",4-3/4" | Rated Capacity: | 50-750 Tons |
|---|---|---|---|
| Type: | DH/SH | Standard: | API 8A/8C |
| Length: | 1800/3300/3600 Mm | Processing Type: | Forged |
| Usage: | Well Drilling | Warranty: | 1 Year |
| Highlight: | Well Drilling Oilfield Weldless Link,750 Tons Oilfield Weldless Link,Forged Oilfield Weldless Link |
||

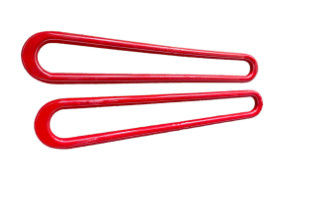

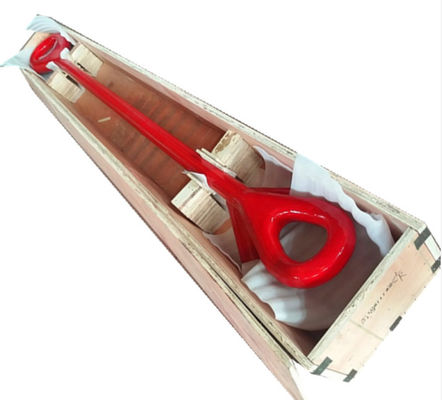

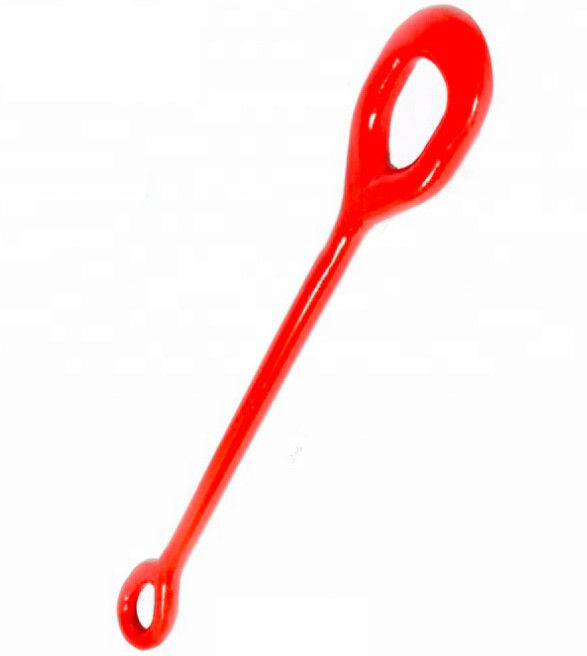

Oilfield Weldless Elevator Link and Perfection Elevator Links
Product Profile
Elevators links are suitable for hanging pipes in the operation of well drilling or repairing. According to the structures, they have two forms: Type DH & Type SH. The weldless links are forged with high quality alloy steel. They are designed and manufactured according to API Spec 8A/8C.
Elevator links are available in 150t,200t, 250t, 350t and 500t rating loads. Partial specifications data for elevator links are provided as follows, any order of elevator links for field service are available.
These kinds of elevator links are designed in accordance with API 8C,7K and relative technical standards and have gotten a production license from relative authority.There are weldless link and perfection link.
Characterstics of Our Oilfield Elevator Link
Our main products
Drill Equipment, Well control system, Solid Control Equipment, OCTG, Well head tools, camps, drill bit and spray head, drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products, Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.
Technical Data of Our Oilfield Elevator Link
| Specifications | DH 150 | DH 200 | DH 250 | DH 350 | DH 500 |
| Rating loads | 150ton | 200 ton | 250 ton | 350 ton | 500 ton |
| Length (cm) | 180 | 270 | 270 | 330 | 360 |
| Specifications | SH 50 | SH 65 | SH 75 |
| Rating loads | 50t | 65t | 75t |
| Length (cm) | 110 | 150 |
180
|
