| Size: | 3 1/2" ~30" | Model: | SX SLX Style Side Door Elevator |
|---|---|---|---|
| Material: | Carbon Steel | Pipe Size: | 2 3/8-5 1/2" |
| Package: | Wooden Case | Processing Type: | Forging |
| Rated Load: | 65Ton, 100Ton,150 Ton,200 Ton | Color: | Red, Orange |
| Highlight: | API Type Side Door Elevator,65T Load Side Door Elevator,Casing Side Door Elevator |
||

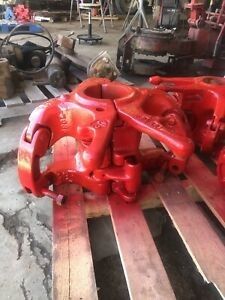

API Type SLX Side Door Elevator Size 3 1/2" for Casing
Product Introduction
The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field. The Elevators are designed and manufactured according to API Spec 8C-Specification for Drilling and Production Hoisting Equipment. S Series side door elevators with square shoulder are suitable for handling casings in oil drilling, natural gas drilling and well construction. The products shall be designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.

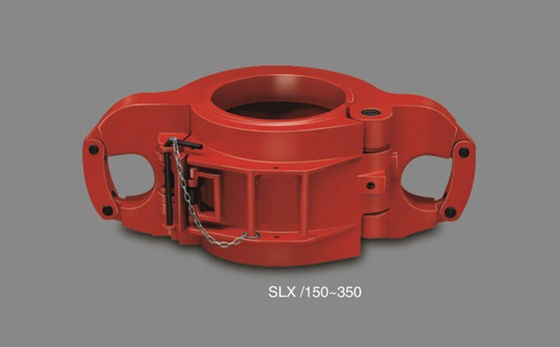

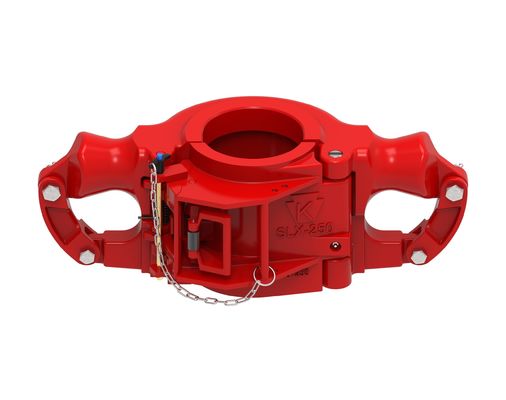

Model SLX side door elevator with square shoulder are suitable for handling tubing, casing ,drill pipe and drill collar in oil and natural gas drilling, well construction. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment
Why choose us?
1. Good manufacturer and supplier on the website, is a credit company.
2. Advanced technology, high quality products and reasonable price!
3. Good service, the customization and trial order are both accepted.
4. A talent and experienced team.
Product Specifications of Our SLX Type Elevator
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load | ||
| In | mm | mm | In | kN(Tons) | |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 |
100(900)
150(1350)
200(1800)
250(2250)
350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 | ||
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 | ||
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 | ||
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 | ||
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 | ||
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 | ||
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 | ||
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 | ||
| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU |
150(1350)
250(2250)
350(3150)
|
|
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU | ||
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU | ||
| DDZ109 | 4IU | 109 | 4IU | ||
| DDZ121 | 4 EU | 121 | 4 EU | ||
| 4 1/2IU | 4 1/2IU | ||||
| 4 1/2IEU | 4 1/2IEU | ||||
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU | ||
| 5IEU | 5IEU | ||||
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU | ||
Xi'An TianRui Petroleum Machinery Equipment Company Limited will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
