Product Details:
Payment & Shipping Terms:
|
| Size: | 2 7/8"-11 1/4" | Model: | TA |
|---|---|---|---|
| Rated Load: | 35-150Tons | Type: | Center Latch Elevator |
| Benefit: | High Performance | Usage: | Drill Collar, Casing, Tubing |
| Material: | Carbon Steel | Surface Treatment: | Spray-Paint |
| Highlight: | Center Latch Drilling Rig Elevator,Casing Drilling Rig Elevator,35T load Drilling Rig Elevator |
||

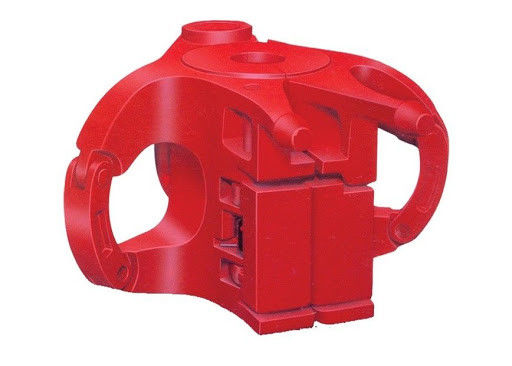

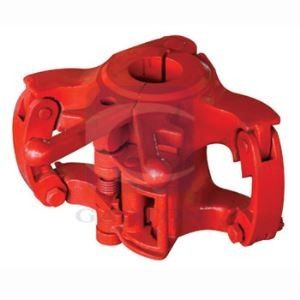

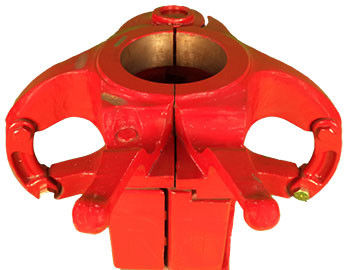

API 8C Drill Pipe Center Latch Elevators for Drilling
Product Descrption
Elevator is a hinged mechanism that may be closed around drill pipe or other drill string components to facilitate lowering them into the wellbore or lifting them out of the wellbore. In the closed position, the elevator arms are latched together to form a load-bearing ring around the component. A shoulder or taper on the component to be lifted is larger in size than the inside diameter of the closed elevator. In the open position, the device splits roughly into two halves and may be swung away from the drill string component.
The TA Style Elevators are for use on tubing, casing and drill collars. The elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Sizes range from 35 tons to 150 tons and cover all size tubular up to 11-1/4".
Our Services
1. TA elevator strictly according to API 8A and 8C standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us
Technical Information of Our TA Type Elevator
|
Model |
Size(in) |
Rate Cap. (Short Tons) |
|||
|
DC |
Tubing |
Casing |
|||
| NU | EU | ||||
| TA-35 | 2 7/8-3 1/8 | 1.05-2 7/8 | 1.05-2 7/8 | / | 35 |
| TA-65 | 2 7/8-3 1/8 | 1.66-2 7/8 | 1.66-2 7/8 | / | 65 |
| TA-100 | 3 7/8-5 1/4 | 2 3/8-5 | 2 3/8-5 | / | 100 |
| TA-150 | 4 1/8-11 1/4 | / | / | 4 1/2-10 3/4 | 150 |
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load | ||
| In | mm | mm | In | kN(Tons) | |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 |
100(900)
150(1350)
200(1800)
250(2250)
350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 | ||
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 | ||
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 | ||
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 | ||
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 | ||
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 | ||
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 | ||
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 | ||
| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU |
150(1350)
250(2250)
350(3150)
|
|
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU | ||
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU | ||
| DDZ109 | 4IU | 109 | 4IU | ||
| DDZ121 | 4 EU | 121 | 4 EU | ||
| 4 1/2IU | 4 1/2IU | ||||
| 4 1/2IEU | 4 1/2IEU | ||||
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU | ||
| 5IEU | 5IEU | ||||
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU | ||
