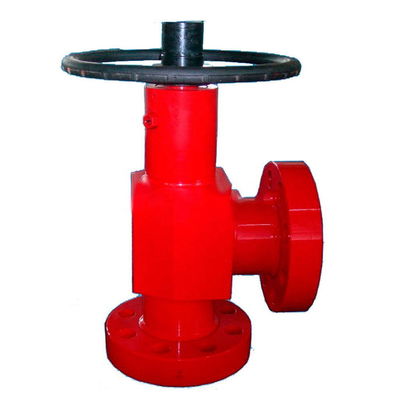

API 7 1/16" Wellhead Adjustable Choke Valve For Oilfield

API 7 1/16" Wellhead Adjustable Choke Valve for Oilfield

Product Introduction

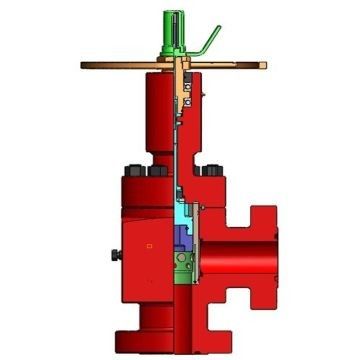

Choke valve is a main component of Christmas tree, is design to control production rate of the oil well, with working pressure up to 15000psi. Choke valves can be classified as follows: adjustable choke valves and positive choke valves. By rotating hand wheel to move the stem, the adjustable choke valve is designed to adjust the effective area available for the flow to accomplish control of production rate. The positive choke valve is design to accomplish control of production rate by changing flow beans.choke valves are supplied in two types: Positive and Adjustable. It's designed as per API 6A, API 16C, NACE MR0175, the structure Type: needle, barrel, cage, orifice and wedge.

Valve body is machined of alloy steel forging with astronger machinery properties and reliable performance.
Bonnet is connected with valve body with bolt, theseals include the sealing ring in the bonnet and the sealin the valve body;
The sealing face between valve core and valve bodyis welded with hard alloy with good abrasion resistanceand anti-scour; the valve core is made of sulfide-resistance steel and the others adopt the process of hard-ness limit so the valve is able to be used in H2S condition.

Operation instruction

According to medium flow direction and by the flowdirection indicating plate of the valve, the valve isinstalled. As positive flowing, The medium lifts the valvecore and pass easily; If no positive medium pressure,valve core will self-shut off valve gate under self-weightand spring's tensile force, the back medium flowing stop.

Main Benefits of Our Oilfield Choke Valve

• The choke valve improves well production time and enhances control at wellhead.
• It is easy to mainten and repair the choke valve, which reduces oilfield operation costs.
• The choke valves improve ability to accommodate change in well operating conditions.

​Technical Parameters of Oilfield Choke Valve

​

Xi'An TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.

Our Services

1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russain.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
