Flange End 10K PSI Oil Drilling Choke Valve Red Color

Red Color Flange End 10K PSI Choke Valve for Oil Drilling

Product Introduction

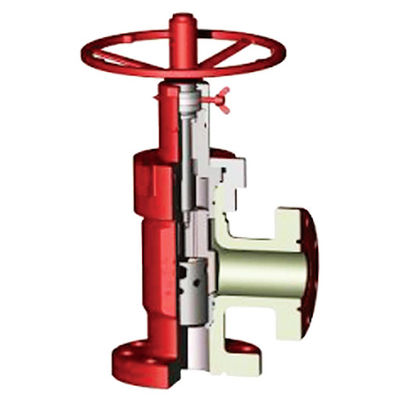

Choke valve is designed and manufactured accord-ing to API Spec 6A "Equipment Specification of Well-head & X'mas tree" and matched and interchangeablewith any equipment which conforms to API 6Aspecification.

We manufacture both Positive and adjustable choke valves in pressure rating up to 10,000 PSI working pressure. Each choke can be interchanged and configured in to positive choke, adjustable choke, and actuated choke. Depending upon the requirement in the site, well conditions, life, and these chokes can be converted in to different types as required. The majority of the components are interchangeable, which makes it easy for manufacturing and maintenance.

Product Maintenance

• Every seal element is replaced according to itsexamination.
• The valve should be placed in the dry and airy room,and the inlet and outlet are sealed properly.
• When the product is stored, the end flanges shouldbe coated by oil against rust and dirt pollution.
• The valve-core and the valve-seat must be exam-ined every in a well time. The attrition rate will decidewhether they are used by upset or are replaced.
• There is a bit leak at a couple of seals of valve, andthe sealing-face may have scratch or wear. Renovationwill be done under face-off and ground finish.
• As leak appears at the middle one of the valvebores, ring gasket should be replaced.

​Product Parameters of Oilfield Choke Valve

​

Xi'An TianRui Petroleum Machinery Equipment Company is a professional solid control manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 and so on. Main products include solid control equipment, oil drilling and service equipment, oil production equipment, OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.

Since the establishment of our company, we have been always sticking to the spirit of“Customer First, Quality Basis, Service Root”, majoring in manufacturing and trade of petroleum equipments and technology. And we have obtained well-known reputation in the industry through our unremitting efforts in all these years. We will go on developing our spirit to make more achievements in the field of petroleum equipment supply and petroleum technology service.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
