Product Details:
Payment & Shipping Terms:
|
| Size: | 4"~17" | Latch Lug Jaw: | 5a~5e3 |
|---|---|---|---|
| Processing Type: | Forging | Rated Load: | 14~135Tons |
| Warranty: | 12 Months | Color: | Red, Yellow, Blue |
| Usage: | Well Drilling | Type: | AAX |
| Highlight: | Manual Hydraulic Casing Tong,Type AAX Hydraulic Casing Tong,Drilling Rigs Hydraulic Casing Tong |
||

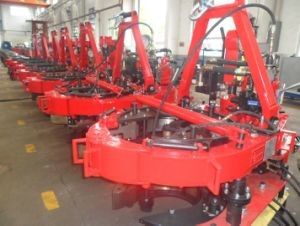

3 1/2" Type AAX Casing Manual Tongs for Drilling Rigs
Product Introduction
Casing tongs are used to tighten or unscrew casing and casing coupling threads in petroleum drilling operations. Products are designed and manufactured according to API Speck 7K specifications.
Type Q340-762/35(133/8-30inch) casing tong is capable of making up or breaking out the screws of casing and casing couplings in drilling operation.
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. has strict systems of scientific research and quality assurance. It has a research & development technology center, a modern product line and maintenance service for oilfield drilling tools, and facilities together with advanced techniques of physical and chemical analysis as well as ultrasonic flaw detection. For materials. Moreover, it is one of the druggeting companies of the industry standard, for eight types of down-hole tools.
Packaging & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 25 days for production, Only 3 or 10 days if we have stock on your request size.

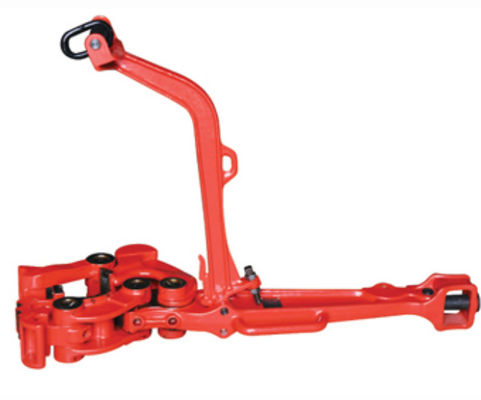

Product Structure
Our manual tongs body is connected with joint pin on the boom and hang over the well rigs through the top ring on the boom,. Try to keep the tongs body in horizontal level by adjusting the balance head and adjustable square head screw. The pipe threads cold be tightened or removed as soon as the steel wire rope which is fastened on the tongs line pip has been pulled firmly after the latch and the lug jaw have been looped and the pipes have been held by the tongs head.
Technical Sheet of Our Casing Manual Tong
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8 | 133/8~141/2 | 340~368.3 | 35 |
| 8,7 | 141/2~16 | 368.3~406.4 | |
| 8,9,9 | 16~171/2 | 406.4~444.5 | |
| 8,9,7 | 171/2~19 | 444.5~482.6 | |
| 7,8,7 | 19~20 | 482.6~508 | |
| 9,8,9,7 | 20~211/2 | 508~546.1 | |
| 9,7,8,7 | 211/2~23 | 546.1~584.2 | |
| 9,9,8,7,7 | 24~251/2 | 609.6~647.7 | |
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,8,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30 | 762 | |
| Hinge clamp number | Fastening diameter | Rated torque KN.m | |
| in | mm | ||
| 9,8,7,7,7 | 251/2~27 | 647.7~685.8 | 55 |
| 8,7,7,7,7 | 27~281/2 | 685.8~723.9 | |
| 9,9,7,7,7,8 | 281/2~30 | 723.9~762 | |
| 9,7,7,7,7,8 | 30~315/8 | 762~803.3 | |
| 8,9,8,9,7,7,7 | 311/2~33 | 800.1~838.2 | |
| 7,9,8,9,9,7,8,9 | 33~341/2 | 828.2~876.3 | |
| 8,7,7,9,9,8,8,8 | 341/2~36 | 876.3~914.4 | |
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. is a professional manufacturer of solid control tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include cement tools, PDC drilling bits, Wellheading tools, Mud pumps and their acceossries.
Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: Petroleum equipment & tools such as solid control equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc. Besides, we also provide oilfield technology service to our domestic and foreign customers. We passed the API and international standards.We have obtained ISO, 3C,etc certificated qualification and extreme standard let us keep very competitive in the current market.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
