Product Details:
Payment & Shipping Terms:
|
| Usage: | Oil Well Drilling | Model: | TQ178-16 |
|---|---|---|---|
| Size Range: | 4"~7" | Max. Pressure: | 18 Mpa |
| Material: | Carbon/Alloy Steel | Air Pressure: | 0.5~0.9 Mpa |
| Color: | Red, Yellow, Customized | Flow Working: | 110~160 L/Min |
| Highlight: | Oilfield Wellhead Casing Power Tong,Power Tong Oilfield Spare Parts,Wellhead Casing Power Tong |
||

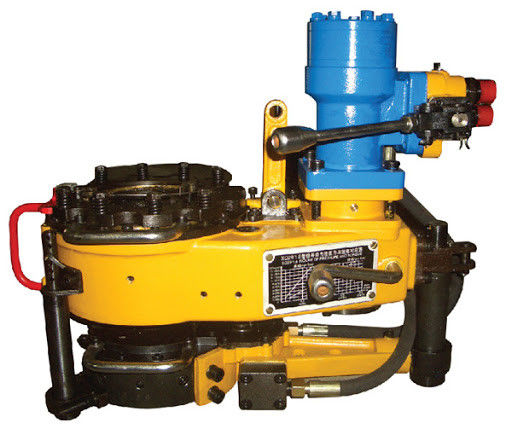

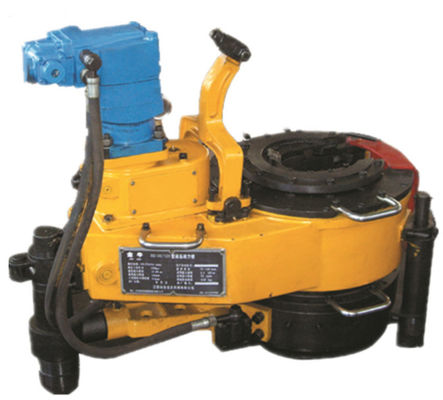

Oilfield Wellhead TQ178-16 Casing Hydraulic Power Tong
Product Descrption
Hydraulic power casing tongs are widely used for making-up or breaking-out of casings or pipes. TQ series of casing tongs are wholly hydraulic driven. Structure is simple and operation is safe. The casing tongs can be supplied with torque device to perform computer monitoring and managing on pressure, torque and rounds.
TQ series of casing Tongs are widely used for making up or breaking out pipes or casings diameters of 4" ~ 13 3/8 ",The tong heads are designed "open" type and can freely clamp and escape from the casing. TQ Casing Tongs are safe ,reliable ,and easy to handle with high mobility. This series of tongs can be connected to computer controlling units and can serve as ideal well mechanical tool for surface operations in oil fields. National Invention Patent of the tong has been got .The tongs are designed and manufactured according to API Spec 7K" Specification for Drilling Equipment ".
Characterstics of Oilfield Hydraulic Power Tong
Technical Info. of Oilfield Hydraulic Power Tong
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
| Size rang |
mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
31/2 coupling -8body |
23/8 coupling -5body |
23/8 coupling-31/2body |
|
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure ratigin | Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure ratigin | L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder | mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong | mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting diatance of tong | mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720 *1050 *1750 |
1700 *1000 *1400 |
1700* 1000 *1400 |
1750* 1650 *2050 |
1570* 800 *1190 |
1110* 790 *820 |
| in | 68* 41*69 |
67* 39*55 |
67* 39*55 |
69* 65*81 |
62* 31*47 |
44* 31*32 |
|
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
Our Team
Our products are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia , African, Australia,Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
