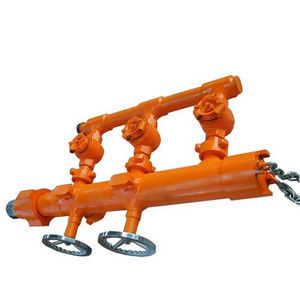

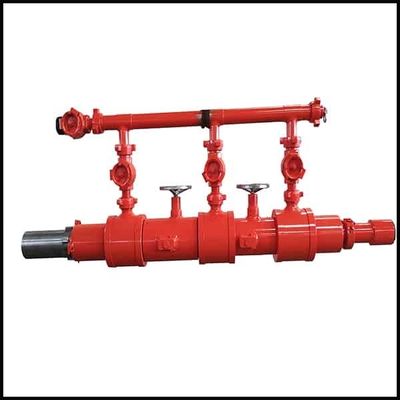

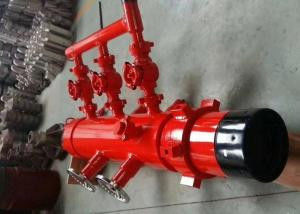

21Mpa 9 5/8" Double Plug Cement Casing Head With Manifold

9 5/8" Double Plug Casing Cement Head with Manifold

Product Descrption

Cementing Head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement Head after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line. We could supply both type of Cementing Head, Single Plug or Double Plug and available sizes are 4 ½" to 13 3/8".

The types of cementing head are various as single-plugs, double plugs cementing head and so on. Double plug cement head is a special tool for grouting cement and releasing rubber plugs. Two rubber plugs can be installed at the same time, which can be used for both conventional double plug cementing and continuous two-stage cementing.

Product Features of Oilfield Cement Head

1. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
2. It is manufactured utilizing API grade steels with API 8 round, buttress and premium threads.
3. Double balance pipe is developed.
4. Positive lever indicates plug releasing.
5. Main parts are made from AISI4145H alloy steel.
6. Top cover and union nut with large trapezoidial-threaded.
7. It makes the tool convenient to disassemble and carry.

Technical Parameters of Double Plug Cement Head

Technical Parameters of Single Plug Cement Head

Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of cementing tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include solid control equipment, cement tools, PDC drilling bits, Wellheading tools, Mud pumps and their acceossries.

In recent years, the company products are not only sold well in domestic market but also exported to different countries and areas in the world. Our products are very popular in the overseas market. A number of overseas well-known enterprises have established a long-term business relationship with us.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
