Product Details:
Payment & Shipping Terms:
|
| Capacity: | 240m3/h | Desander Cyclone Qty: | 2nos |
|---|---|---|---|
| Desilter Qty: | 12nos | Inlet Size: | DN150mm |
| Separation Point: | 15-44um | Weight: | 1250kg |
| Desander Cyclone Specs: | 10" | Desilter Cyclone Specs: | 4" |
| Working Pressure: | 0.25-0.4Mpa | Outlet Size: | DN200mm |
| Bottom Shaker: | TRZS752 | Dimension: | 1835*1230*1810mm |
| Highlight: | High Chromium Mud Cleaner,Pure Polyurethane Mud Cleaner,0.4mpa Mud Cleaning Equipment |
||

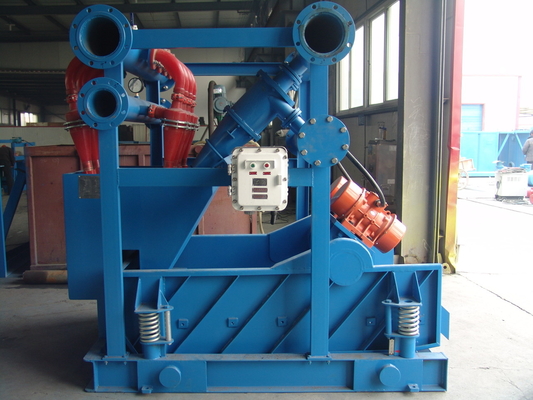

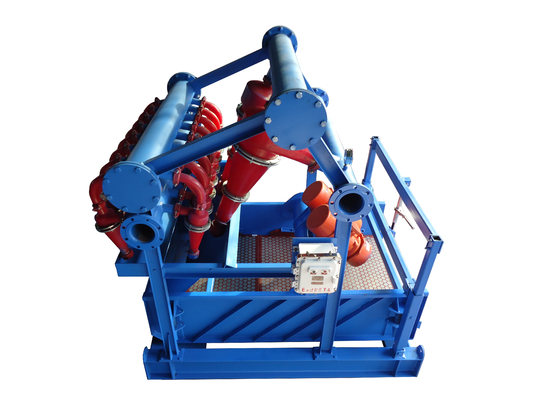

Hot Sale Slurry Processing Supplier Mud Cleaner for Oil and Gas Drilling Application
Introduction
Mud Cleaner is the second class and the third class solids control equipment which is the newest type to treat the drilling fluid. TRQJ series drilling mud cleaner are combined from Desander, Desilter and and Underflow Screen. Our Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker.
TR mud cleaner structure is compact, it occupy small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud. We can design customized cost-effective mud Cleaner for customers special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
Advantages of TRQJ Series Mud Cleaner
Technical Data of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Application
TRQJ mud cleaner is widely used in trenchless HDD, tunneling construction, city bored piling, oil & gas drilling, Drilling Waste Management, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Oil Sludge Dewatering Systems, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
