Product Details:
Payment & Shipping Terms:
|
| Capacity: | 240m3/h | Desander Cyclone Qty: | 2nos |
|---|---|---|---|
| Desilter Qty: | 12nos | Inlet Size: | DN150mm |
| Separation Point: | 15-44um | Weight: | 1250kg |
| Desander Cyclone Specs: | 10" | Desilter Cyclone Specs: | 4" |
| Working Pressure: | 0.25-0.4Mpa | Outlet Size: | DN200mm |
| Bottom Shaker: | TRZS752 | Dimension: | 1835*1230*1810mm |
| Highlight: | Drilling Waste Sand Cleaning Equipment,240m3/h Waste Sand Cleaning Equipment,Compact Sand Mud Cleaner |
||

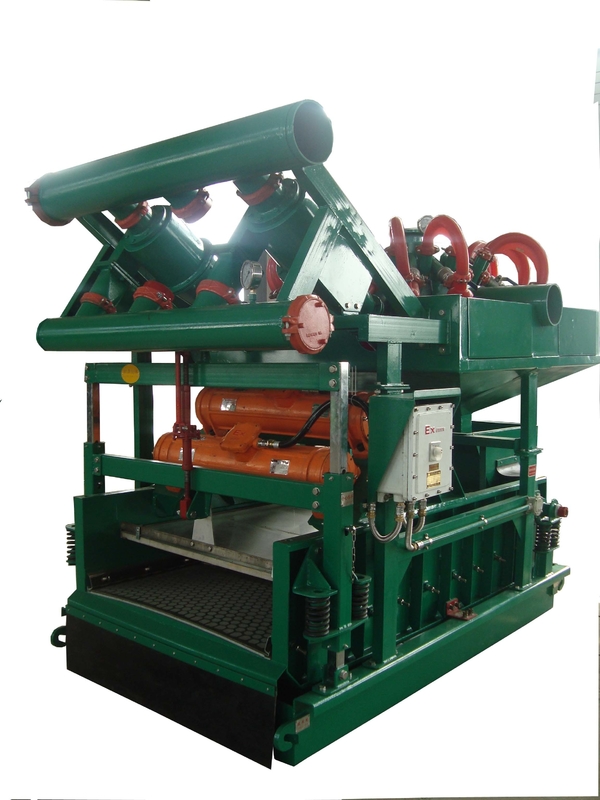

High Quality Drilling Mud Cleaner for Oil and Gas Drilling , Mud Cleaner for Sale
Introduction
Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.
Our mud cleaner structure is compact, it occupy small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud. We can design customized cost-effective mud Cleaner for customers special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
Advantages of TRQJ Series Mud Cleaner
Technical Data of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Application
TR mud cleaner is now widely used in city bored piling, trenchless HDD, tunneling construction, oil & gas drilling, Drilling Waste Management, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Oil Sludge Dewatering Systems, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
