Product Details:
Payment & Shipping Terms:
|
| Capacity: | 320 M3/h | Main Body Diameter: | 1200mm |
|---|---|---|---|
| Inlet Pipe: | DN125mm | Output Pipe: | DN250mm |
| Gas Discharge Pipe: | DN200mm | Weight: | 2600 Kg |
| Dimension: | 2200*2200*6634 Mm | Application: | Energy & Mining |
| Highlight: | Poor Boy Degasser 320m3/H,Drilling Site Degassing Equipment 1200mm,Mud Gas Separation Poor Boy Degasser |
||

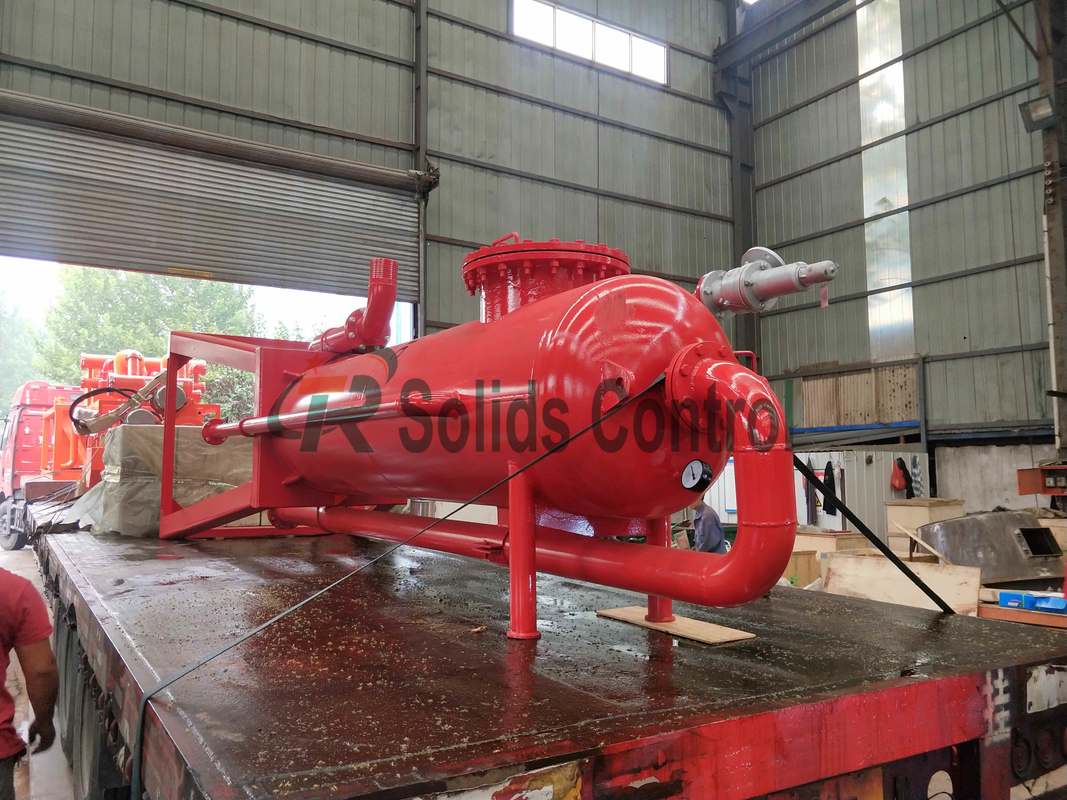

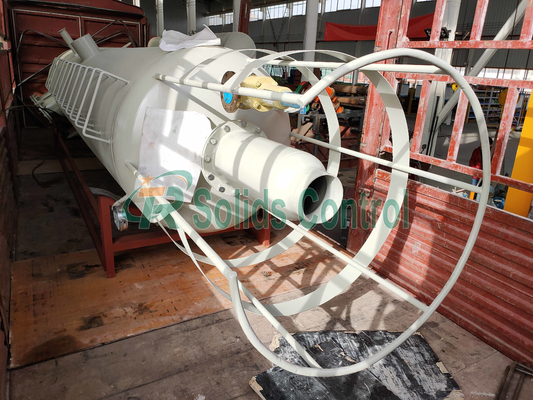

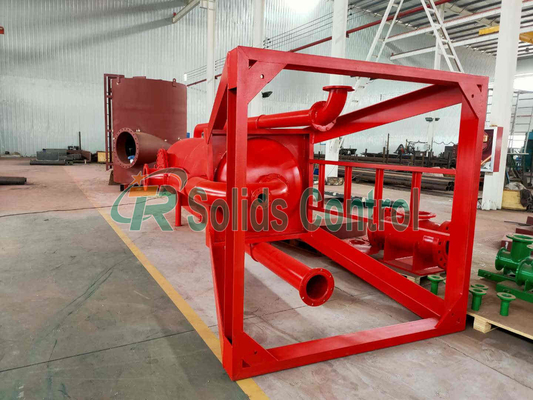

320 m3/h Poor Boy Degasser / Mud Gas Separator for Drilling
Product Overview
ZYQ series Mud gas separator(Poor Boy Degasser) is professional equipment to treat the gas invade mud. When the drilling mud result gas invade, the proportion of its weight and viscosity have a greater deviation not to meet the requirements of drilling. The serious situation is that would cause Chung well, and even blowout accident occurred, if not to treat it timely. ZYQ series Mud gas Separator combined with the Electric Ignition Device can be used to ensure the drilling process smooth. It is divided into the normal pressure Mud gas separator and pressure auto-control Mud gas separator, according to the pressure. Mud gas Separator is your best choice to prevent drilling mud invasion.
TR Solids Control is a leader in mud gas separator. Our TRZYQ series mud gas separator is devided into normal pressure Mud gas separator and pressure auto-control Mud gas separator, according to the pressure. TR mud gas separator is a field proven and extremely reliable safety equipment designed for today’s challenging drilling operations. It is your best choice to prevent drilling mud invasion.
Design Advantages of TRZYQ Mud Gas Separator
Main Specification of TRZYQ Mud Gas Separator
| Model | TRZYQ800 | TRZYQ1000 | TRZYQ1200 |
| Capacity | 180 m³/h | 240 m³/h | 320 m³/h |
| Main Body Diameter | 800mm | 1000mm | 1200mm |
| Inlet Pipe | DN100mm | DN125mm | DN125mm |
| Output Pipe | DN150mm | DN200mm | DN250mm |
| Gas Discharge Pipe | DN200mm | DN200mm | DN200mm |
| Weight | 1750kg | 2235kg | 2600kg |
| Dimension | 1900*1900*5700mm | 2000*2000*5860mm | 2200*2200*6634mm |
Why choose us TR Solids Control?
1. Own factories in China mainland.
2. Engaged in the solid control equipment for over 10 years.
3. Achieve patents for intellectual property protection.
4. QUALITY SESTEM to make sure the superior high quality.
5. Large product series for one-stop service.
6. Consulting, suggesting, help find perfect solution.
Our Mud Gas Separator is mainly used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Currently it is widely used in Drilling Waste Management, city bored piling, trenchless HDD, oil & gas drilling, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, mining, Water Drilling, environment protection, Oil Mud Seperation etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
