Fluids Solid Control API 80mm Drilling Mud Gun High Speed Jet Nozzle Strong Stirring Shearing

80mm API Oilfield Drilling Mud Gun in Solid Control System

Main Introduction

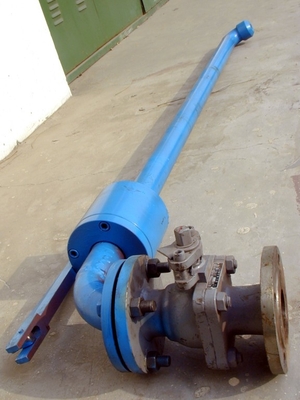

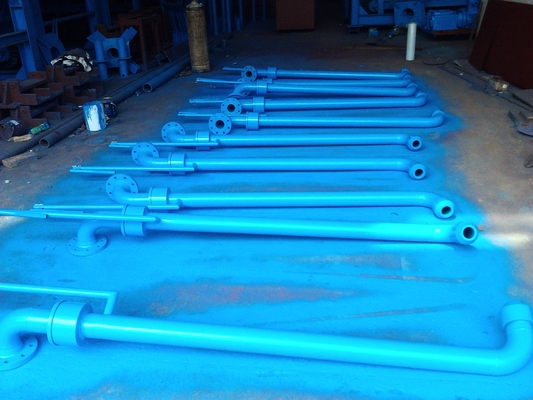

Mud gun in drilling fluids processing system is always located at the corner of the tank to keep solids from settling. The impetus of mud gun can come from higher high-pressure mud pump and Jet Mud Mixer. Mud gun always applied together with Mud agitator that installed at the center of mud tank. In drilling mud-processing system, mud gun often used in trip tank, mud mixing tank and mud storage tank.

The number of mud gun depends on the size of tank. Usually mud gun installed with mud line of mud tank. According the inlet pipe size, there are 2" mud gun and 3" mud gun for option. According to different structure feature, there are two types of mud gun: fixed mud gun , and rotary mud gun.

The choosing of mud gun depends on the tank size. It is usually installed with mud line. We can provide 2’’ and 3’’ inlet pipe for option and our mud gun can be classified into three kinds--low pressure, medium pressure and high pressure. And it is mainly used to match with centrifugal pump or shear pump. TR mud gun has nice sealing performance and high wear-resisting replaceable nozzle, which will bring the mud treatment into a better efficiency.

Design Characterstics of TRNJQ Series Mud Gun

1. Flexible on configuration of size and pressure rates.
2. Jet nozzle is both replaceable and wearable.
3. Adopts high-speed jet nozzle, with strong stirring and shearing function.
4. Can be 360° all-round rotation, easy to operate.
5. Discharge nozzle are made from polyurethane material, with long service life.

Specifications of TRNJQ Series Mud Gun

Why you need to choose TR Solids Control?

As a professional oil and gas manufacturing company, TR Solids Control has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.

Based on China fast-development petroleum machine industry system, TR Solids Control has already established a stable and complete recourse net. We have gained the close relationship and priority from many powerful manufacturers .This obvious advantage makes us always can supply competitive price,technology and delivery. We are a bridge to connect China With the world.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
