| Key Words: | Wide Open-Vane Lmpeller Centrifugal Pump | Flow Rate: | 120m3/h |
|---|---|---|---|
| Lift: | 35m | Impeller Diameter: | 13inch |
| Power: | 30kw | Electric System: | 50HZ |
| Ex Standard: | ExdIIBt4/IECEX/A-TEX | Weight: | 696kg |
| Dimension: | 1696*568*805mm | Color: | Green Or Other |
| Highlight: | Drilling Mud System Centrifugal Pump,120m3/H Flow Rate Centrifugal Mud Pump,Centrifugal Mud Pump 50HZ |
||

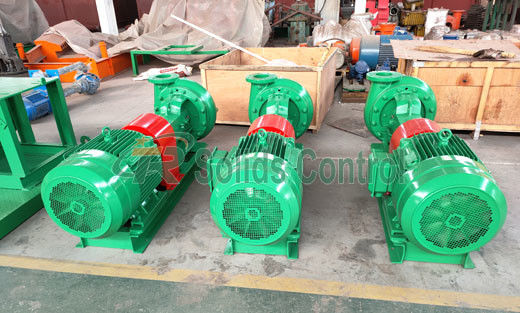

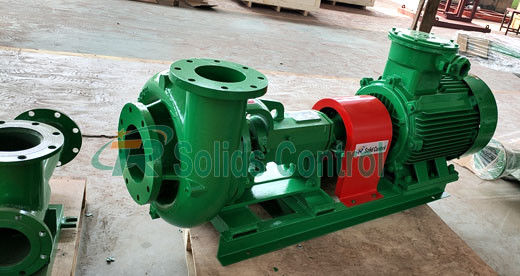

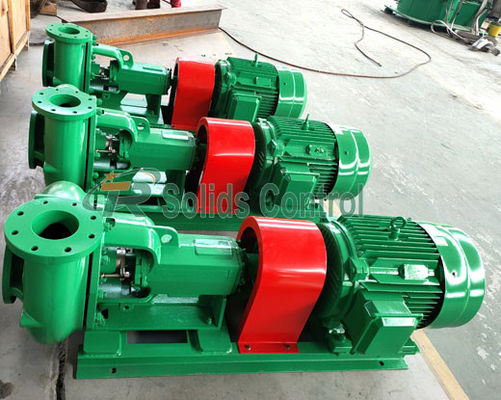

Oil Filed Drilling Centrifugal Pump for Sale / Replaceable Mission Magnum Pump
Brief Introduction
Centrifugal pump is widely used in the whole drilling mud system Through complete solids control system, it is used as trip pump, desander, desilter pump, mixing pump, charging pump, and so on.We provide complete line centrifugal pumps used in drilling mud system.
Centrifugal pump is a kinds of drilling fluid pump developed for special installation requirement. Horizontal sand pump is commonly used in drilling fluids, but it does not have self-priming function and can be installed under mud tank to make the tank volume small. Also horizontal sand pump is not easy to disassemble. Therefore, TR developed a new type of vertical sand pump for this purpose.
Advantages of TRSB Centrifugal Sand Pump:
Technical Parameters of TRSB Centrifugal Sand Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Product Application
TRSB series centrifugal pump is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling etc. TR Solids Control is dedicated to developing our product line continuously and offering innovative solutions to our customers. Our centrifugal pump can be totally interchangeable with Mission series pump.
