| Key Words: | Mission Centrifugal Pump For Hot Sale | Flow Rate: | 90m3/h |
|---|---|---|---|
| Lift: | 30m | Impeller Diameter: | 10inch |
| Power: | 22kw | Electric System: | 60HZ |
| Ex Standard: | ExdIIBt4/IECEX/A-TEX | Weight: | 583kg |
| Dimension: | 1648*568*800mm | Color: | Green Paint Or Other |
| Highlight: | Oil Drilling Vertical Centrifugal Pump,Centrifugal Mud Pump 90m3/H,Heavy Duty Centrifugal Mud Pump |
||

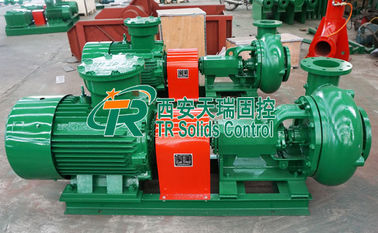

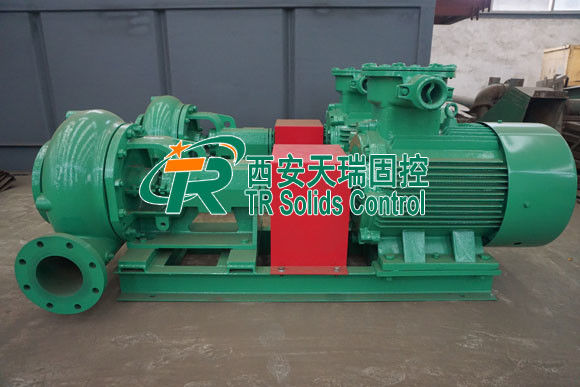

Heavy Duty Oil Drilling Centrifugal Pump , Mission Pump TRSB5*4-10J
Main Introduction
TRSB series Centrifugal Pump is used for transferring slurry or mud or water. It can be used as feeding pump for desander and desilter, or used as mixing pump for jet mud mixer. Centrifugal Pump is also called as Sand Pump, Mixing Pump, Feeding Pump, Replenishing Pump and Filling Pump. It is the ideal matching equipment to provide impetus for desander, desilter and Jet mud mixer. Centrifugal pump can also be an assistant mud infusion pump and trip pump at well head. Our centrifugal pump can realize the quick positioning.
Compared with the general pump, our centrifugal sand pump is with excellent performance, high traffic, high temperature, long service life, easy maintenance, high reliability and remarkable energy saving characteristics. Now it is widely used around the world on onshore and offshore drilling site. We will provide customers with the best pumps to meet different requirements.
Main Features of Centrifugal Pump:
Techncial Information of TR Drilling Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
How To Choose Centrifugal Pump?
At present, TRSB series centrifugal sand pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
