| Flow Rate: | 120m3/h | Lift: | 35m |
|---|---|---|---|
| Impeller Diameter: | 13inch | Power: | 30kw |
| Electric System: | 50HZ | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Weight: | 696kg | Dimension: | 1696*568*805mm |
| Highlight: | Centrifugal Mud Pump 30KW,Drilling Waste Management Centrifugal Pump,Open Impeller Centrifugal Mud Pump |
||

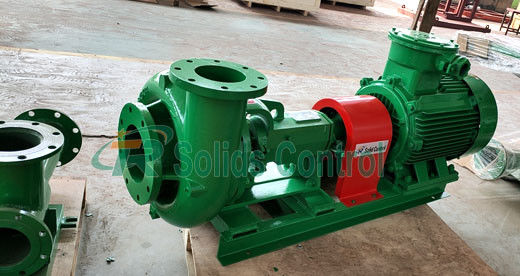

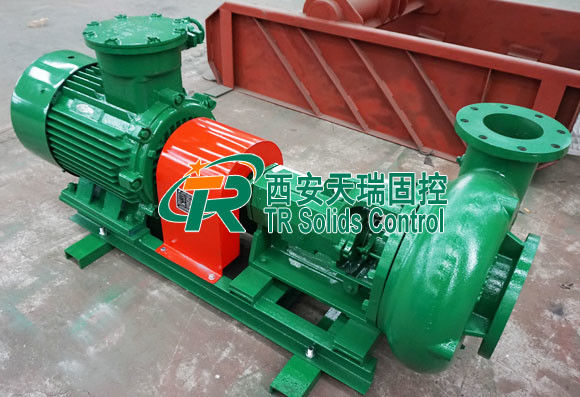

30KW High Performance Centrifugal Sand Pump for Drilling Waste Management
Product Introduction
Drilling centrifugal pump is a kinds of drilling fluid pump developed for special installation requirement. Horizontal sand pump is commonly used in drilling fluids, but it does not have self-priming function and can be installed under mud tank to make the tank volume small. Also horizontal sand pump is not easy to disassemble. Therefore, TR developed a new type of vertical sand pump for this purpose.
Our Centrifugal pump is ideal corollary equipment to provide power for desander, desilter and jet mud mixer. It also can fill mud pump and replenish wellhead in drilling process. Most of its parts can be exchangeable. It has advantages of reliable operation, easy maintenance, little shaft seal leakage, and long service life.
Benefits of TRLSB Series Sand Pump:
Tachnical Info. of TRSB Series Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
TR Solids Control is absorbed in developing our product line continuously and offering innovative solutions to our customers. Our centrifugal pump can be totally interchangeable with Mission series pump. Over 10000 sets of centrifugal pump are widely used in overseas market including United States (Nabors), Russia South America, Middle Asia and Middle East. 4 patents given to the SB series centrifugal pumps including special mechanical seal technology ensures long service life, no leaking within more than 1 year. Special designed impeller improves the centrifugal pumps' efficiency and energy-saving by 10%.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
