Product Details:
Payment & Shipping Terms:
|
| Body Diameter: | 900m | Capacity/Flow Rate: | 300m3/h |
|---|---|---|---|
| Vacuum Degree: | -0.03~-0.045Mpa | Transmission Ratio: | 1.68 |
| Degassing Efficiency: | ≥95% | Main Power: | 30kw |
| Vacuum Pump Power: | 4kw | Impeller Speed: | 876r/min |
| Ex Standard: | Exd II Bt 4 / IECEX / A-TEX | Dimension: | 2250*1330*1650mm |
| Highlight: | 30KW Vacuum Degasser,Oil Sludge Drilling Vacuum Degasser,Mud Cleaning Vacuum Degassing Machine |
||

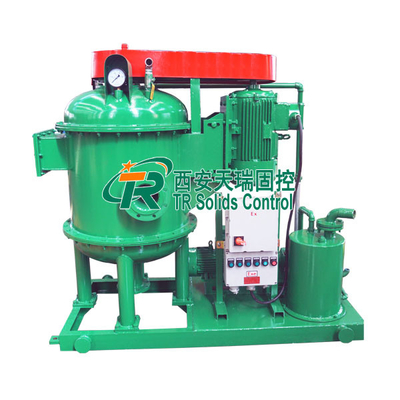

API Standard Oil Sludge Drilling ZCQ Series Vacuum Degasser , Used For Mud Cleaning
Introduction
The vacuum degasser is a specialized device and a new type of gas treatment equipment in drilling fluids. It can quickly remove various types of invading gas during drilling operations. The vacuum degasser is crucial for maintaining mud gravity, stabilizing mud viscosity, and reducing drilling costs. It can serve as a powerful agitator and is suitable for all types of mud circulation purification systems.
The design of the vacuum degasser structure is scientific and rational, enabling us to achieve effective gas-liquid separation, filter out impurities, and ensure that the exhaust pipe remains smooth. The vacuum degasser plays the role of agitation in drilling fluid. With a universal design, our vacuum degasers can be customized to meet the specific needs of our clients.
Application
Our drilling vacuum degasser is widely used in various industries, including drilling waste management, water drilling, oil and gas drilling, oil sludge dewatering systems, coal bed gas solids control system, trenchless HDD and tunnelling, oil mud separation, and bored piling.
Features of TRZCQ Series Vacuum Degasser
Technical Data of TRZCQ Series Vacuum Degasser
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg |
1800kg |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
