Product Details:
Payment & Shipping Terms:
|
| Model: | 150YZ250-40A | Flow: | 135m3/h |
|---|---|---|---|
| Lift: | 35m | Speed: | 1480r/min |
| Motor: | 55kw | Appllication: | Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management |
| Highlight: | 55KW Submersible Sludge Pump,Long Shaft Submersible Slurry Pump,Horizontal Directional Drilling Submersible Slurry Pump |
||

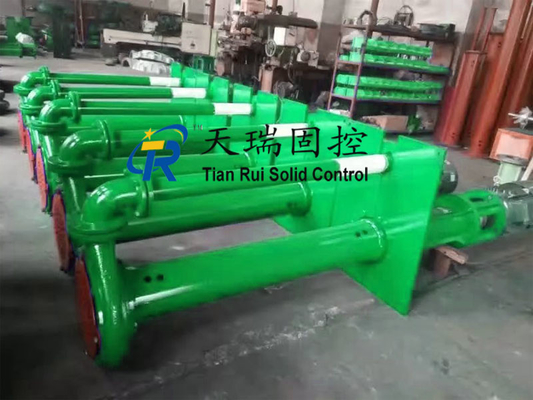

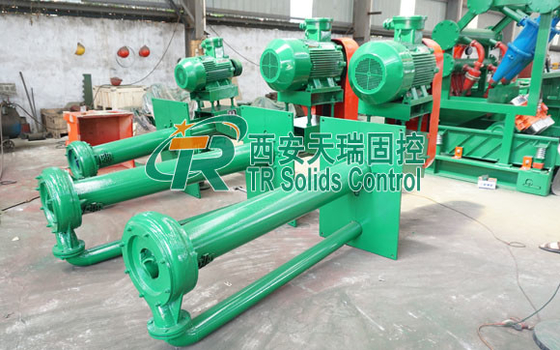

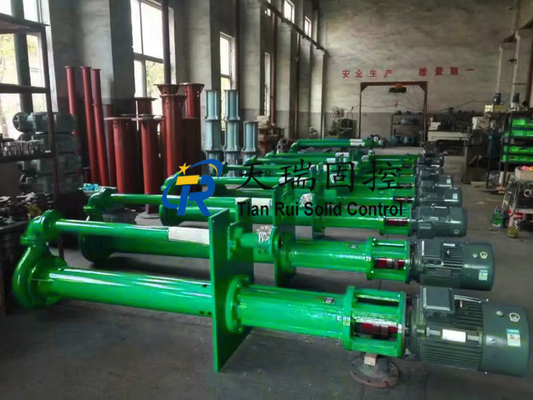

Long Shaft Horizontal Directional Drilling Submersible Slurry Pump / API Certified
Introduction
Submersible slurry pump is a kind of vertical single stage & suction cantilever centrifugal pump, it is also called vertical sand pump. Our YZ series submersible slurry pump mainly supplies mud for shale shaker and decanter centrifuge from the mud pit. Its structure is single sucking cantilever type. It uses bearing seat, supporting seat and pipe to connect the hydraulic parts of pump, and liquid is discharged from the hydraulic hose assembly.
Our submersible slurry pump has vertical single stage and single suction system in overhung structure, adopting wear-resistant alloy material and can convey the mud / slurry with bigger solid particles. The drive is mounted on the motor base by a vertical motor and connected to the pump with a coupling.
Application
Our submersible slurry pump is currently used in city bored piling, oil & gas drilling, trenchless HDD, tunnelling construction, Oil Mud Seperation, coal washing, Coal Bed Gas Solids Control System, Water Drilling, environment protection, Drilling Waste Management, Oil Sludge Dewatering Systems, municipal projects, thermal power generation, mining, paper making, cement plant etc.
Features of TR Submersible Slurry Pump
Technical Data of YZ Series Submersible Slurry Pump
| Model | Flow | Lift | Speed | Motor |
| 50YZ25-12 | 25m3/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20m3/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40m3/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60m3/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90m3/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75m3/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60m3/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82m3/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120m3/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135m3/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120m3/h | 28m | 1480r/min | 37kw |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
