Product Details:
Payment & Shipping Terms:
|
| Motor Power: | 18.5kw | Impeller Speed: | 60/72r/min |
|---|---|---|---|
| Impeller Diameter: | 1000mm | Impeller Qty: | 2pcs |
| Ex Standard: | ExdIIBt4/IECEX/A-TEX | Dimension: | 1510*890*753mm |
| Weight: | 740kg | Key Words: | High Quality Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time |
| Highlight: | 18.5kw Drilling Mud Agitator,High Speed Drilling Mud Agitator,Well Drilling Fluid Mud Tank Agitator |
||

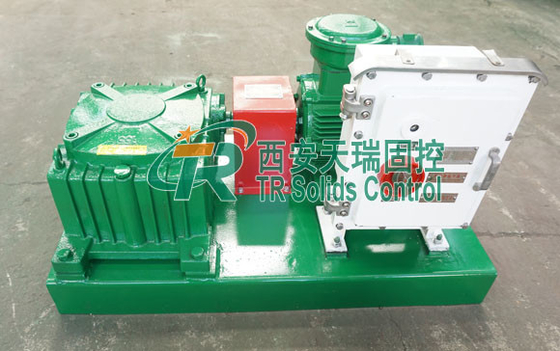

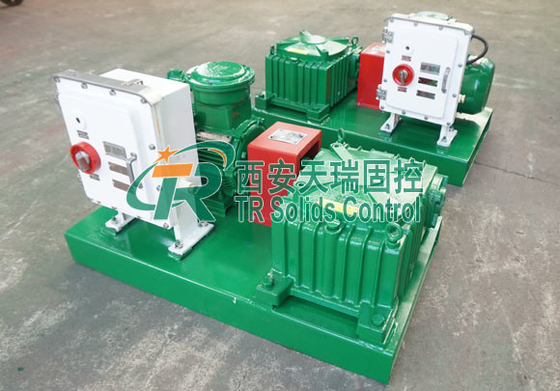

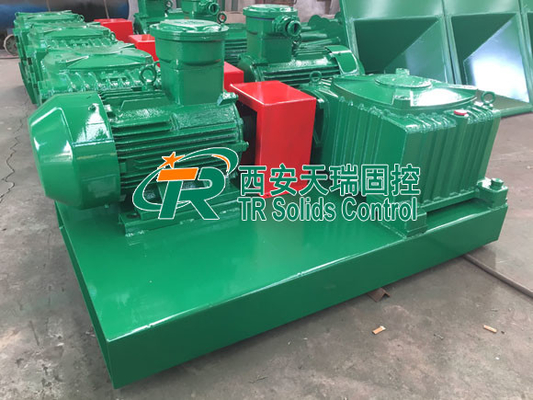

High Speed Mud Agitator for Solid Control System / Oilfield Drilling Mud Agitator
Main Introduction
TRJBQ series mud Agitator, Less than 5.5 kW drilling mud Agitator adopts the blender cycloid speed reducer, and it is applied to the drug liquids mixing tank. This mud agitator has the advantage of compact structure, so it occupies small area. More than 7.5 kW Mud Agitator uses the turbo and worm gear speed reducer, with the large torque transmission, the revolution is steady, it works reliablely and has great merit. Common model of mud agitator is JBQ5.5kW, JBQ7.5kW, JBQ11kW and JBQ15kW.
TR Solids Control can manufacture mud agitator with worm and wheel gearbox, also the agitator with helical bevel gear box. The high performance, efficiency, and quality is appreciated by many clients. Helical bevel geared agitator will transfer more efficient to shaft save more energy than common worm and wheel gearbox. No matter for horizontal or vertical agitator, there is helical bevel gearbox available.
Main Specialities of drilling mud agitator:
Specifications of Drilling Mud Agitator
| Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
| TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 |
ExdIIBt4/IECEX/A-TEX |
190kg | 909×525×527mm |
| TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
| TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
| TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
| TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
| TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
| TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
| Remark | Above weight and dimension exclude mud agitator shaft. | ||||||
Our Service
TR Solids Control have rich experience in manufacturing all kinds of solid control equipment. All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. Welcome to consult with us for any after-sale service.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
