Product Details:
Payment & Shipping Terms:
|
| Model: | TRCN100-4N | Capacity: | 60m3/h |
|---|---|---|---|
| Hydrocyclone: | 4nos | Working Pressure: | 0.25-0.4Mpa |
| Inlet Size: | DN100mm | Outlet Size: | DN125mm |
| Separation Point: | 15μm-44μm | Bottom Shaker: | TRZS60/N/A |
| Weight: | 550kg | Dimension: | 1510*1160*2000mm |
| Highlight: | polyurethane hydrocyclone,dewatering hydrocyclone |
||

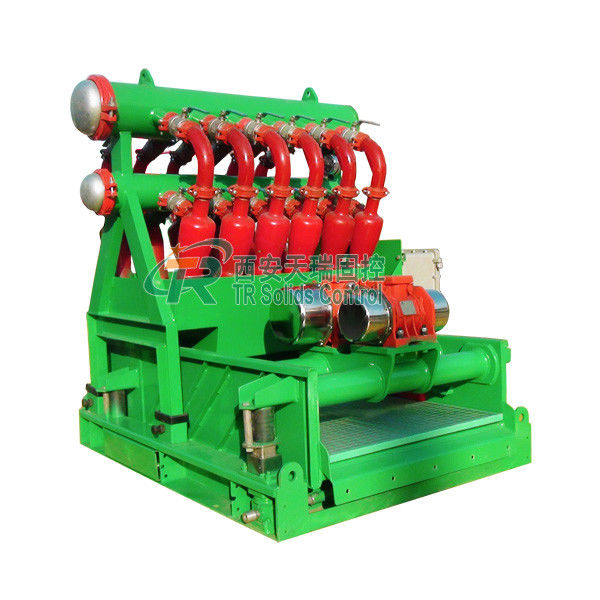

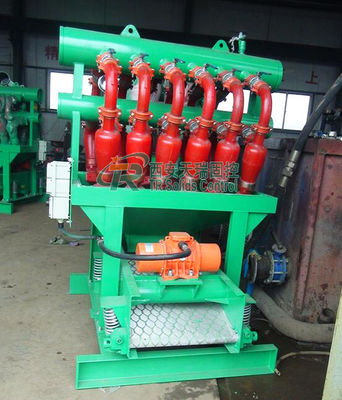

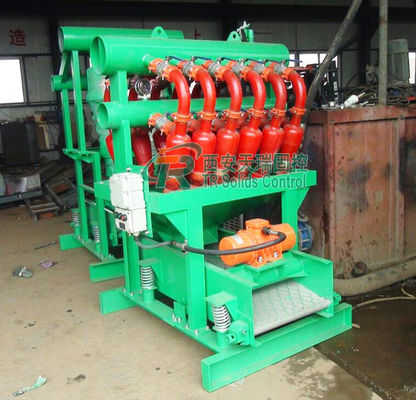

Long Life Span TRCN100-4N Mud Drilling Desilter with 100% Pure Polyurethane Cyclone
Brief Introduction
Desilter is a type of solids control equipment similar as desander. Configured with a set of desilter cones to separate 15~46 micron particles from drilling mud. It is composed of several sets of hydrocyclones on the basis of customer’s capacity requirements. As for hydrocyclones, it is split into desander hydrocyclone and desilter hydrocyclone according to different hydrocyclone diameter. Normally below 6” hydrocyclone combination is called desilter. In oil & gas drilling, 4” or 5” hydrocyclone combination are common for desilter, and 4” is the most used.
The hydrocyclone of TRCN series desilter has long service life and stable performance. It is applicable to various kinds of drills in oilfields. The inlet and outlet of hydrocyclone can be connected very quickly, which is convenient for replacement and maintenance.
Features of TRCN Series Mud Desilter
Technical Data of TRCN Series Mud Desilter
| Model | TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
| Capacity | 60m3 | 90m3/120m3 | 180m3/240m3 | 300m3 |
| Cyclone Specs | 4” | |||
| Cyclone Qty | 4 pcs | 6pcs/8pcs | 12pcs/16pcs | 20pcs |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN100mm | DN125mm | DN150mm | DN150mm |
| Outlet Size | DN125mm | DN150mm | DN200mm | DN200mm |
| Separation Point | 15μm -44μm | |||
| Bottom Shaker | TRZS60 | TRZS60 | TRZS752 | TRZS703 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 2770*1785*1810mm |
| Weight | 550kg | 560kg/580kg | 1150kg | 1950kg |
| Remark | All desilter could be customized without bottom shaker. | |||
Product Application
TR drilling desilter is currently used in micro-tunneling,oil & gas drilling, city bored piling, Drilling Waste Management, tunneling construction, environment protection, Oil Mud Seperation, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, trenchless HDD, mining, Water Drilling etc. Welcome your inquiry and consulting!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
