Product Details:
Payment & Shipping Terms:
|
| Capacity: | 130m3/h | Motor Power: | 1.72kw*2 |
|---|---|---|---|
| Screen Area: | 2.7m2 | Double Amplitude: | 6mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (585*1165mm)*4pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 1600kg |
| Highlight: | mud shaker,drilling fluid equipment |
||

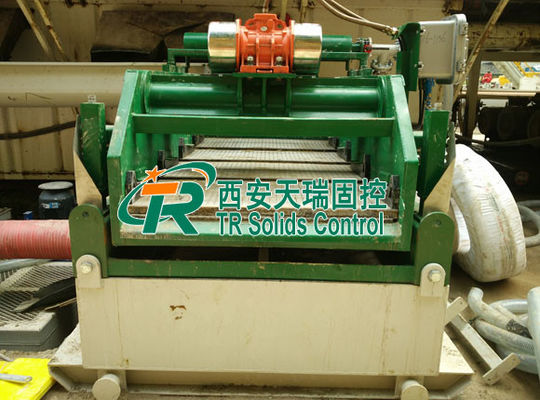

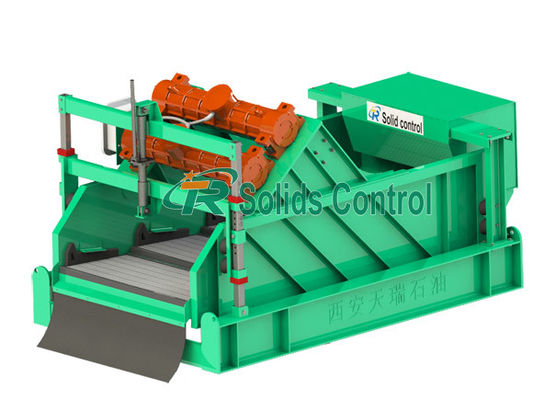

Mud Solid Control System / Oilfield Drilling Fluids Shale Shaker 130m3/H
Product Introduction
Shale shaker is the first phase solids control equipment in oil drilling solid control system. It's the important equipment in mud recycling system as well. Generally, shale shaker is divided into single shale shaker, duplex shale shaker and triple shale shaker. TR Solids Control can provide the shale shaker in different treatment capacity with customized service as per clients’requirement.
TR Solids Control can design both double shakers and triplicate shale shaker according to clients’ special demands, and we also supply relevant connecting manifold. Meanwhile, our shaker can be used as underflow vibrating screen of mud cleaner. TR mud shale shaker has advantages of high vibration intensity, large screening area, adjustable screen angle, compact structure, high performance and cost-effective. We are a professional designer and manufacturer in mud shale shaker.
Main Benefits of our drilling shale shaker
Technical Data of TR Shale Shaker
| (Model) | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
