Product Details:
Payment & Shipping Terms:
|
| Capacity: | 130m3/h | Motor Power: | 1.72kw*2 |
|---|---|---|---|
| Screen Area: | 2.7m2 | Double Amplitude: | 6mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (585*1165mm)*4pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 1600kg |
| Highlight: | mud shaker,drilling fluid equipment |
||

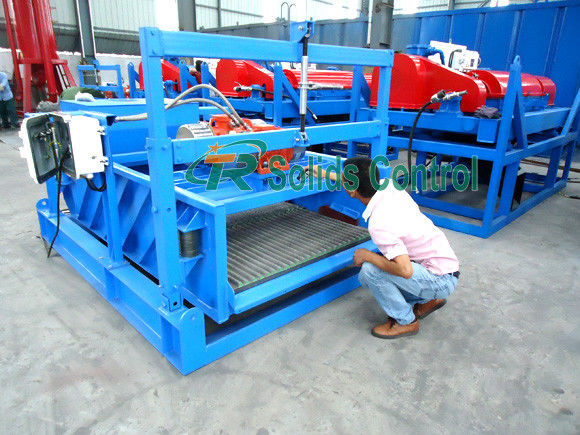

Durable Linear Motion Shale Shaker 6mm Double Amplitude With Overall Heat Treatment
Brief Introduction
Shale shaker can be used as a primary shale shaker and drying shaker for desander and desilter cones.The linear motion design with Adjustable high G force make our linear motion very popular for any types of drilling including: oil gas drilling, CBM drilling, HDD, water well, geothermal well drilling mud cleaning. The simple but heavy duty design makes our shale shaker have reliable operation with less maintenance.
Mud shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system Usually shale shaker decides performance of the whole solids control system. TR Solids Control can design double shakers and triplicate shakerson single skid according to clients special requirements and also supply relevant connecting manifold, according to current industry situation. We mainly provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.
Key Features of our shale shaker
Parameter of TR Drilling Shale Shaker
| Model | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
