Product Details:
Payment & Shipping Terms:
|
| Motor Power: | 3kw | Impeller Speed: | 60/72r/min |
|---|---|---|---|
| Impeller Diameter: | 600mm | Impeller Qty: | 1pcs |
| Ex Standard: | ExdIIBt4/IECEX/A-TEX | Dimension: | 909*525*527mm |
| Weight: | 190kg | Key Words: | High Quality 3kw Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time |
| Highlight: | mud tank agitator,fluid mixing equipment |
||

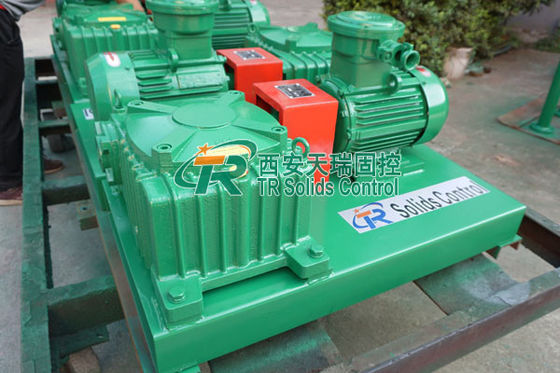

Long Work Life Reliable Performance Oilfield Drill Mud Agitator for Sale
Main Product Introduction
Mud Agitator is used to provide continuous and reliable agitation of drilling liquid in order to retain uniformity of drilling and keep solid particles suspending. It is compact structure, light weight, transmission balance, low noise, high efficiency and strong capability, bcz the reducer adopts turbine worm single reduction gear.
TR can manufacture mud agitator with worm and wheel gearbox, also the agitator with helical bevel gear box. The high performance, efficiency, and quality is appreciated by many clients. Helical bevel geared agitator will transfer more efficient to shaft save more energy than common worm and wheel gearbox. No matter for horizontal or vertical agitator, there is helical bevel gearbox available.
Main features of TRJBQ series drilling mud agitator:
Specifications of TRJBQ Series Drilling Fluid Mud Agitator
| Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
| TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 |
ExdIIBt4/IECEX/A-TEX |
190kg | 909×525×527mm |
| TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
| TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
| TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
| TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
| TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
| TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
| Remark | Above weight and dimension exclude mud agitator shaft. | ||||||
TR Solids Control is a professional and main manufacturer of mud agitator in China. Our mud agitators have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, service and reasonable prices. Welcome friends from all over the world to come to visit our factory and guidance our work.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
