Product Details:
Payment & Shipping Terms:
|
| Body Diameter: | 1000m | Vacuum Degree: | -0.03~-0.045Mpa |
|---|---|---|---|
| Degassing Efficiency: | ≥95% | Vacuum Pump Power: | 7.5kw |
| Dimension: | 2400*1500*1850mm | Capacity/Flow Rate: | 360m3/h |
| Transmission Ratio: | 1.72 | Main Power: | 37kw |
| Impeller Speed: | 880r/min | Weight: | 1800kg |
| Highlight: | vacuum degassing unit,vacuum degassing machine |
||

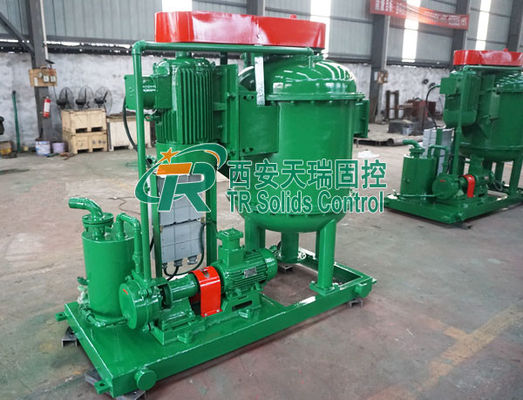

API China Vacuum Degasser Manufacturer for Gas Immersed Drilling Fluid
Product Introduction
Vaccum degasser is a solid-control device that specifically handles invading drilling fluids, invasive gas in drilling fluid can be quickly removed, recovery drilling fluid proportioin and stable drilling fluid performance. It is an indispensable equipment for exploration wells, ultra-deep wells and underbalanced well drilling projects, suitable for supporting various drilling fluid circulation perification systems.
TR Vacuum Degassers are able to serve the needs of any application. It's usually installed after shale shakers. Each degasser can efficiently and effectively remove gases from gas-cutmud, thus ensuring the proper mud weight is pumped down hole. By doing so, degassers are able to aid in the prevention of potential blowouts. Unlike the traditional vacuum degasser, our degasser is a self-contained unit. It is monitored by level sensor to protect over suction of the fluids.
Main Features of Oilfield Vacuum Degasser
Technical Parameters of Vacuum Degasser
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg | 1800kg |
If you want to buy Vacuum Degasser, you just need to be prepared to answer these following questions:
1.What is the handling capacity?Such as 240m3/h,270m3/h,300m3/h,360m3/h.
2.What is the diameter of the main body? 700mm,800mm,900mm,1000mm.
3.What is the power of the Vacuum pump? Such as 2.2 kw, 3 kw,4kw,kw
4.What is the power of the main motor? Such as 15kw,22kw,30kw,37kw.
5.What are the dimensions?
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
