Product Details:
Payment & Shipping Terms:
|
| Model: | 150YZ250-40A | Flow: | 135m3/h |
|---|---|---|---|
| Lift: | 35m | Speed: | 1480r/min |
| Motor: | 55kw | Appllication: | Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management |
| Highlight: | submersible sludge pump,submersible sewage pump |
||

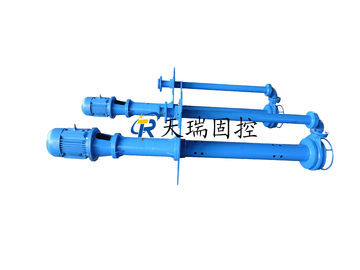

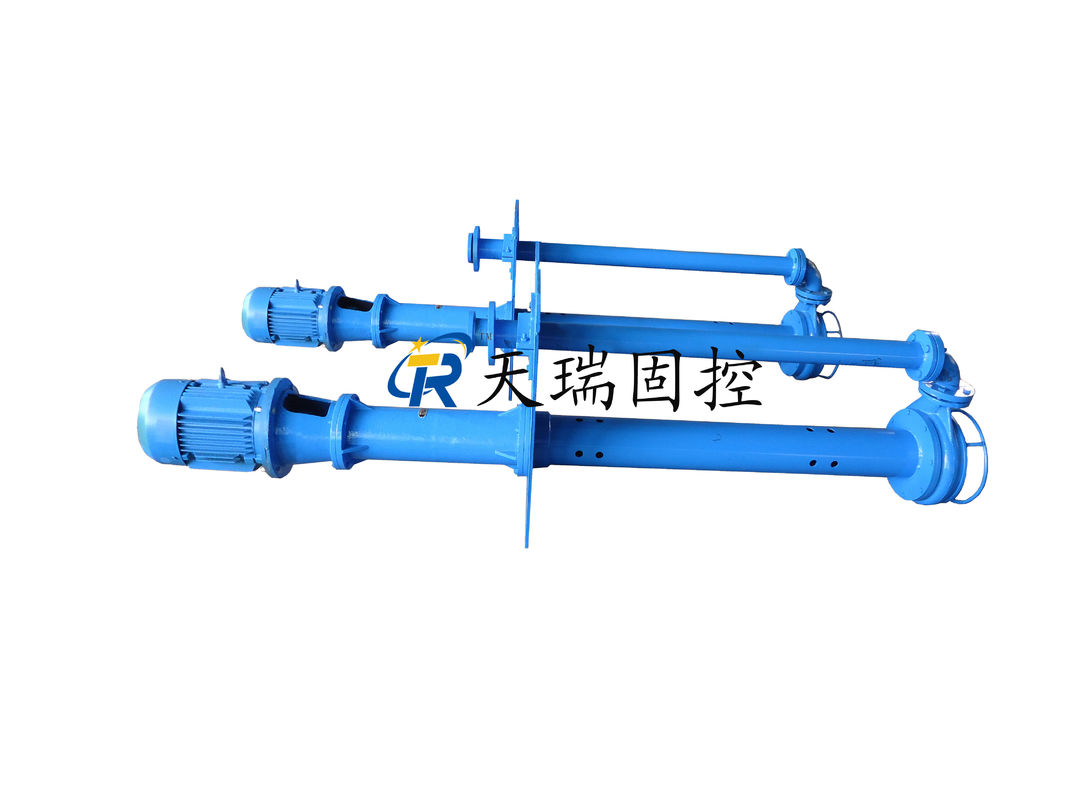

Large Capacity 135m3/h Submersible Slurry Pump for Oilfield Drilling
Introduction
Our YZ series submersible slurry pump mainly supply mud for shale shaker and decanter centrifuge from the mud pit. It can transport large particles of solid particles. Pump inserted in the liquid length usually is between 800mm to 1900mm, and it can be equipped with suction pipe if necessary. The drive is mounted on the motor base by a vertical motor and connected to the pump with a coupling.
Our submersible slurry pump has vertical single stage and single suction system in overhung structure, adopting wear-resistant alloy material and can convey the mud / slurry with bigger solid particles. The drive is mounted on the motor base by a vertical motor and connected to the pump with a coupling.
Key Features of TR Submersible Slurry Pump
Technical Data of YZ Series Submersible Slurry Pump
| Model | Flow | Lift | Speed | Motor |
| 50YZ25-12 | 25m3/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20m3/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40m3/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60m3/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90m3/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75m3/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60m3/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82m3/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120m3/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135m3/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120m3/h | 28m | 1480r/min | 37kw |
We are a professional equipment company on research, design, production and sales of solid control equipment and drilling tools.
We are a first class authorized company of Sinopec, and member of CCPIT and CCOIC.
We havestrong technical force, advanced processing equipment, and engage in technical exchanges and cooperation with foreign companies and Universities.
Single screw pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed. Welcome to contact with us for any of your submersible slurry pump needs!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
