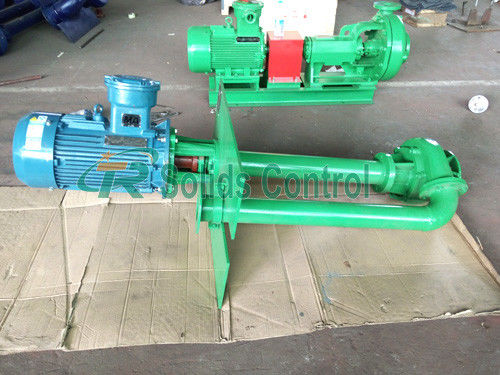

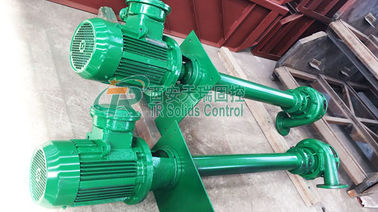

Solid Control Feeding 3kw Submersible Sludge Pump

Solid Control Feeding Pump Submersible Slurry Pump with API Certificate

Product Introduction

Submersible slurry pump was used for taking out ropiness fluids and dirty fluids from the drilling fluids. Slurry pump usually offer the mud fluid for the decanter centrifuge in oilfield industry. some of other area could corporated with desander and shale shake.

The submersible slurry pump may penetrate the liquid between 800m-2500mm under it, and may be equipped with suction pipes if necessary. Vertical motor is installed on the motor base, connected to the pump by coupling. TR 100YZ100 Series Products adopt Nanyang or other national famous brand explosion-proof motor and Anti-corrosion painting in the national famous brand Dewei.

Our YZ series submersible slurry pump mainly supply mud for shale shaker and decanter centrifuge from the mud pit. Its structure is single sucking cantilever type, and uses bearing seat, supporting seat and pipe to connect the hydraulic parts of pump, and liquid is discharged from the hydraulic hose assembly. Pump’s impeller is semi-open type, and it’s equipped with mixing blade in the stretch part of impeller inlet.

Main Advantages of TR Submersible Slurry Pump

1. Enough rigidity in submerged parts of the shaft.
2. Impeller is semi-open type.
3. Submerge length can be customizable.
4. Compact design covers small space.
5. No bearing between impeller and pump for less repair cost.
6. Could convey the medium containing solid particles with larger density.
7. Vertical motor is installed on motor base, connecting the pump by coupling.

Main Parameters of YZ Series Submersible Slurry Pump

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
