Gas Invasion Oilfield Solid Control Poorboy Degasser

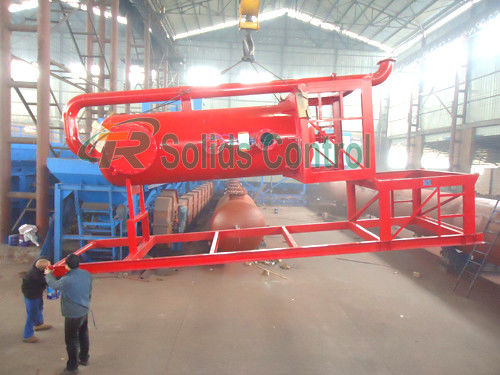

Oilfield Solid Control Mud Gas Separator / Poor Boy Degasser

Product Overview


Mud Gas Separator is a special equipment for the primary degassing of the gas invasion drilling fluid, which is mainly used to remove the large bubbles in the gas invasion drilling fluid with a diameter of about 3mm to 25mm. Mud Gas Separator or Poor boy degasser used in separating fluids and gas while drilling. TR provides ZYQ Mud Gas Separator. Low price and high quality,swift delivery,professional design,circumspect service.

The gas invasion drilling fluid enters the separator from the inlet of the separator, and the surface area of the drilling fluid is enlarged and exposed after impacting with the impact plate. The large bubble is broken and separated from the drilling fluid. After the first degassing of the drilling fluid, the surface area of the three layers of baffles is increased again, and the remaining bubbles are broken and separated again. The free gas is discharged through the gas outlet of the top of the tank and is brought to the safety place.

Main Specialities of TR Mud Gas Separator

1. Efficient degassing performance.
2. Skid-Mounted and Trailer Transportable. Simplifying transport, spotting and installation.
3. Versatile Configuration. Flow line adjustments can be raised or lowered to minimize piping.
4. Fail-safe gas delivery can be controlled by a back-pressure manifold valve in the flare line.
5. Reduces Hazardous Gas Threat. Separated gas is carried by discharge lines to safe area for combustion.
6. Separates free gas accumulations especially toxic gases from drilling mud system.

Technical Parameters of TRZYQ Mud Gas Separator


Main Application

Liquid gas separator is made of suction assembly, drain pipe assembly, ladder, pedestal and tank body assembly. Before used the separator put it on the smoothy earth and connect the suction pipe. The suction pipe connect used 5″national standard flange, one side of flange welding 5″ suction line connect the pump and connect the flange by bolt. Welding ″fuller unionat the export of exhaust pipe and welding it with 8″pipeline. Connect drain pipe with 8flange and
welding the other side of this flange with 8 pipeline.

Our principle is to offer high quality products at competitive price to benefit our customers and the industry in the long run. Our products enjoy high reputation at home and abroad. We have successfully established a stable and increased market share and we are constantly making efforts to actively expand our sales network.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
