| Capacity: | 180m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Control System: | PLC | Application: | Oil Well Drilling, Tunnel, Subway |
| Voltage: | 380V | ||
| Highlight: | Oil Drilling Mud Mixing Equipment,DN150 Mud Mobile Hopper |
||
Mixing Unit Mud Mixing Hopper for Oil Drilling
Product Description

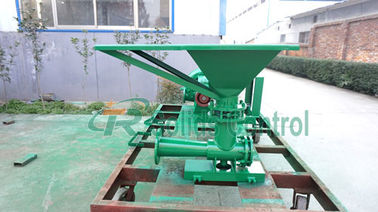

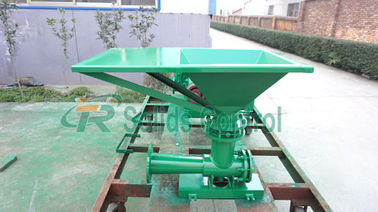

Mobile hopper is a new mixer of additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It can mix powder material, and also suck liquid chemical additives.

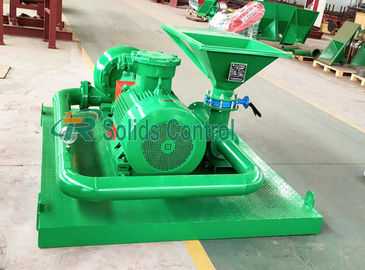

Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.
Advantages of TRSL Mud Hopper:
1. Quick Feeding: Strong suction with high speed jet nozzle.
2..Easy Operation: Standard butterfly valve on inlet.
3. Strong Mixing Capability: Venturi tube in outlet.
4. The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.
Specifications of Jet Mud Mixer & Mud Hopper
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
China-based manufacturer TR Solids Control offers the world with drilling mud jet mud mixing services. We are an exporter of drilling fluid jet mud mixing hoppers for the Indian, Russian, and Middle East markets, among others. We manufacture and design drilling bentonite mud mixing hopper units, as well as drilling mud tank jet mixers. We have supplied to Oilfield Company in Turkey, Venezuela, Indonesia, Russia, the United Arab Emirates, Turkey, Morocco, and the United Arab Emirates, among others.
Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service, and reasonable prices.
