Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60 M3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 500*500mm |
| Weight: | 140 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | Drilling Fluid Mixing Funnel 60m3/H,Fluid Mud Mixer Hopper,Mud Mixing Equipment DN150 |
||

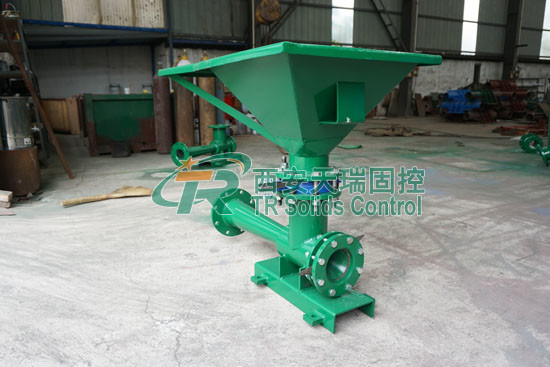

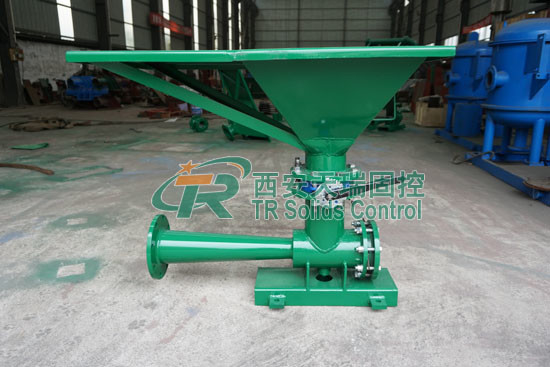

150mm Inlet Diameter Mixing Hopper API / ISO Certificated
Product Introduction
Mud Hopper is used to concoct the drilling fluids and to change its density and viscosity.
TRSL serial direct injected mixing hopper is a directly injected mixer of the additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It also can have shearing and hydration system with shear pump. We have two models with metric and British system.
The mud mixer is a piece of equipment used together with solids control system together. It can meet the requirements of drilling fluid weighting and mixing for solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with 45 Kw (or 55 Kw) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features as safe performance and convenient transportation.
Main Characterstics of TR Jet Mux Mixer:
1. The jet mixing device is comprised of one sand pump, one jet mixer(or several pumps and mixers) , valves and manifold, convenient transporation, installation and service, etc.
2. Used for preparation and increase the total of drilling fluid, to change drilling fluid density, viscosity, water loss.
3. The novel jet injection device was designed by combining with venturi tube and original jet nozzle.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
TR exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
