Product Details:
Payment & Shipping Terms:
|
| Capacity: | 130m3/h | Motor Power: | 1.72kw*2 |
|---|---|---|---|
| Screen Area: | 2.7m2 | Double Amplitude: | 6mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (585*1165mm)*3pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 1600kg |
| Highlight: | Compressed Shale Shaker,Oilfield Shale Shaker |
||

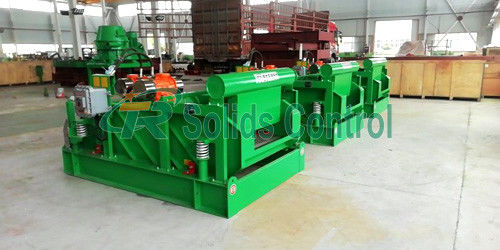

Standard Oilfield Solids Control Oil Equipment Shale Shaker
Product Introduction
Shale shaker can be used as a primary shale shaker and drying shaker for desander and desilter cones.The linear motion design with Adjustable high G force make our linear motion very popular for any types of drilling including: oil gas drilling, CBM drilling, HDD, water well, geothermal well drilling mud cleaning. The simple but heavy duty design makes our shale shaker have reliable operation with less maintenance.
TR shale shaker absorbed advanced tech at home and abroad, complete series shale shaker can meet customers’variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc. Nowadays we mainly provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.
Main Charateristics of Our Mud Shale Shaker:
Technical Parameters of Drilling Shale Shaker
| Model | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
Our Services & Strength
TR regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
