Product Details:
Payment & Shipping Terms:
|
| Capacity: | 140m3/h | Motor Power: | 2.2kw*2 |
|---|---|---|---|
| Screen Area: | 2.9m2 | Ex Standard: | ExdllBt4 |
| Vibration Motion: | Linear Motion | Screen Specs.: | (1050*695mm)*4pcs |
| Vibration Strength: | ≤7.0G(Adjustabe) | Color: | Green, Orange, Blue Or Customized |
| Dimension: | 3310×1600×1850mm | Weight: | 1500kg |
| Highlight: | 140m3/h Linear Motion Shale Shaker,Linear Motion Rock Shaker Screen,1500kg Linear Vibratory Screen |
||

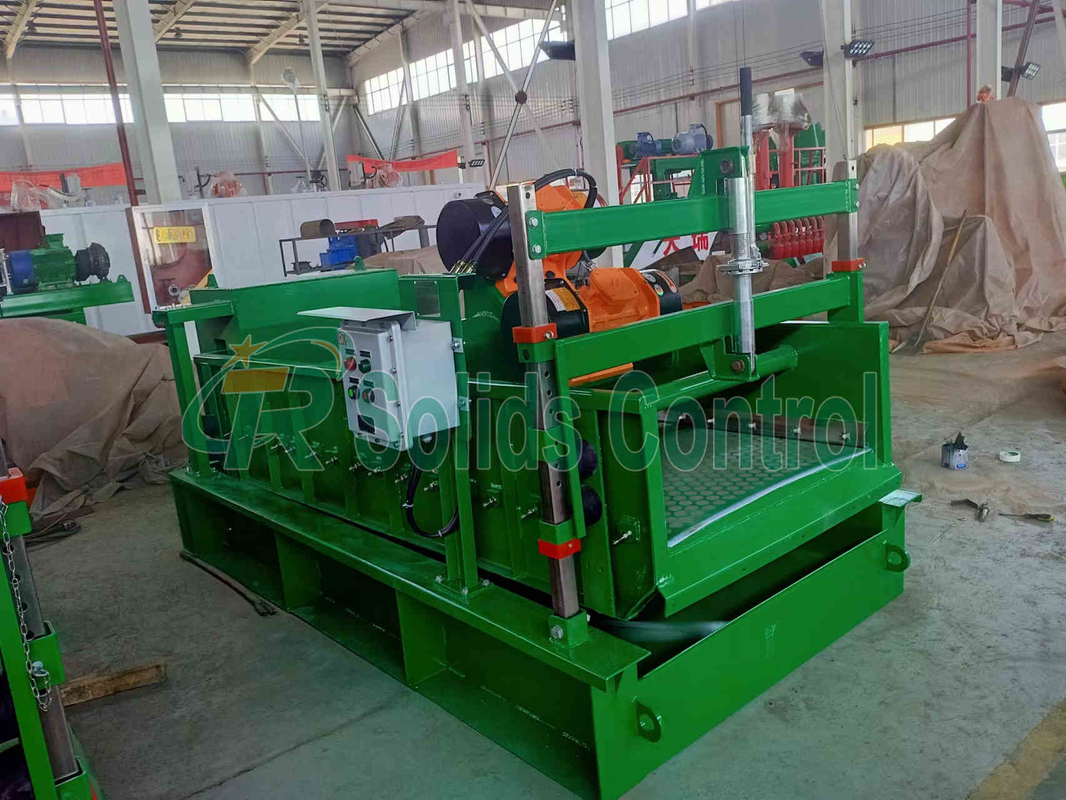

TRFLC2000-4 Linear Motion Shale Shaker , Used for Well Drilling
Introduction
Shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment. It's used in many industries, such as oil and gas drilling, coal cleaning(CBM), horizontal directional drilling (HDD), mining, etc.
Drilling shale shaker was originally mainly used to remove large solid particles in drilling mud, thereby ensuring the normal use of subsequent mud purification and separation equipment. At present, it has been given a new mission, namely as a basic equipment in drilling waste management. Also, it's used as a primary separation equipment in sludge treatment system.
Main features of our mud shale shaker
Technical Parameters of TR Shale Shaker
| (Model) | TRFLC2000-4 |
| Vibration Motion | Linear Motion |
| Treatment Capacity | 140m³/h |
| Motor Power | 2.2kw*2 |
| Screen Specs. | (1050*695mm)*4 |
| Screen Area | 2.9m² |
| Vibration Strength | ≤7.0G |
| Deck Adjustment | -1°~+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX |
| Weight | 1500kg |
| Dimension | 3310*1600*1850mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. |
Application
TR shale shaker is widely used in trenchless HDD, Drilling Waste Management, city bored piling, oil & gas drilling, tunneling construction, Coal Bed Gas Solids Control System, Oil Mud Seperation, micro-tunneling, Oil Sludge Dewatering Systems, environment protection, mining, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
