Product Details:
Payment & Shipping Terms:
|
| Body Diameter: | 1000m | Capacity/Flow Rate: | 360m3/h |
|---|---|---|---|
| Vacuum Degree: | -0.03~-0.045Mpa | Transmission Ratio: | 1.72 |
| Degassing Efficiency: | ≥95% | Main Power: | 37kw |
| Vacuum Pump Power: | 7.5kw | Impeller Speed: | 880r/min |
| Weight: | 1800kg | Dimension: | 2400*1500*1850mm |
| Highlight: | 360 M3/H Vacuum Degasser,0.045 Degree Vacuum Degassing Unit,Vacuum Mud Gas Separator |
||

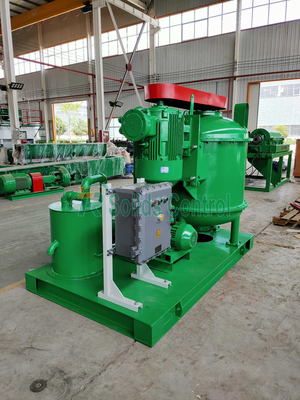

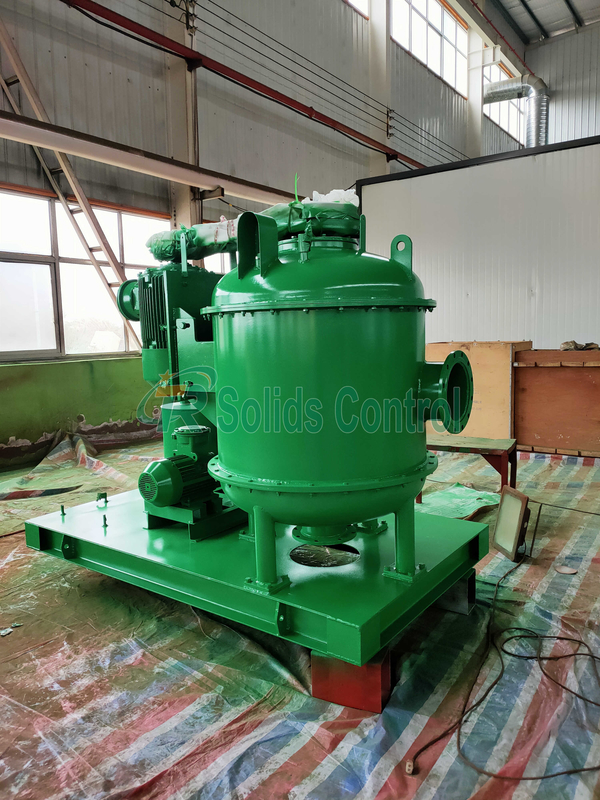

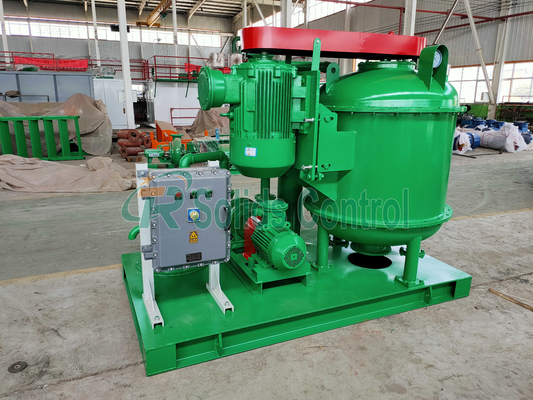

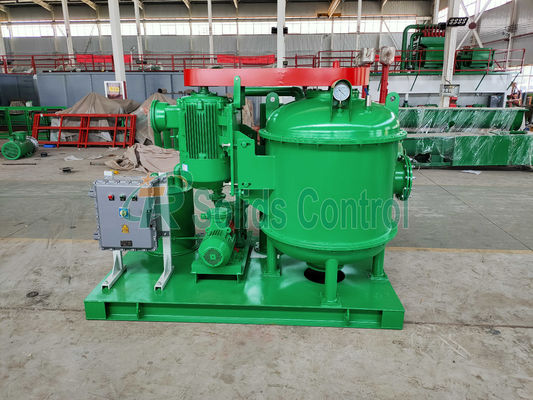

Drilling Rig Part Mud Vacuum Degassing System / Oilfield Vacuum Degasser
Introduction
Vacuum Degasser is also called mud/Gas separator. Mud/gas separators (Degasser) is the first units of arranged to treat drilling mud. As such, they process all of the drilling mud from the flow line before the mud reaches the primary . The units have no moving parts and rely on the density difference between the gas and the mud for removal. The process is simple, yet very effective for well.
TRZCQ series vacuum Degasser is a special-purpose device and a new type one for gas treatment in drilling fluids. It can get rid of various invasive gas in drilling fluids quickly. Degasser is very important for stabilizing mud viscosity, returning mud gravity and reducing drilling cost. It can be used as a heavy-power agitator and supported applicable to all types of mud circulation system.
Main Benefits of TR Vacuum Degasser
Parameters of Our Vacuum Degasser
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg |
1800kg |
If you want to buy Vacuum Degasser, you just need to be prepared to answer these following questions:
1. What is the handling capacity?Such as 240m3/h,270m3/h,300m3/h,360m3/h.
2. What is the diameter of the main body? 700mm,800mm,900mm,1000mm.
3. What is the power of the Vacuum pump? Such as 2.2 kw, 3 kw,4kw,kw
4. What is the power of the main motor? Such as 15kw,22kw,30kw,37kw.
