Product Details:
Payment & Shipping Terms:
|
| Capacity: | 130m3/h | Motor Power: | 1.72kw*2 |
|---|---|---|---|
| Screen Area: | 2.7m2 | Double Amplitude: | 6mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (585*1165mm)*4pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 1600kg |
| Highlight: | Petroleum Linear Motion Shale Shaker,Fluids Drilling Shale Shaker,Linear Motion Drilling Shale Shaker |
||

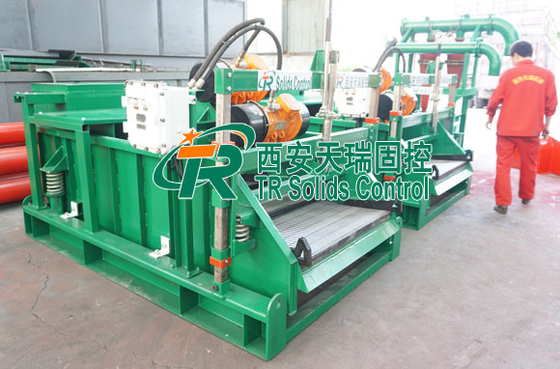

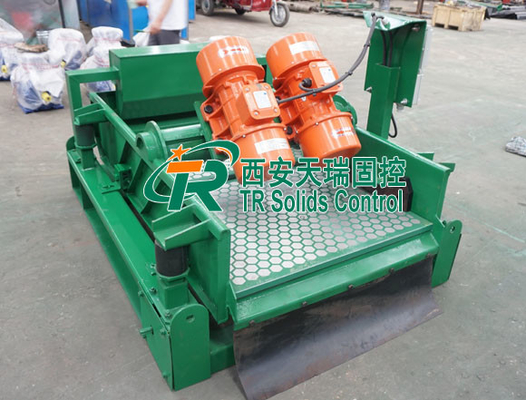

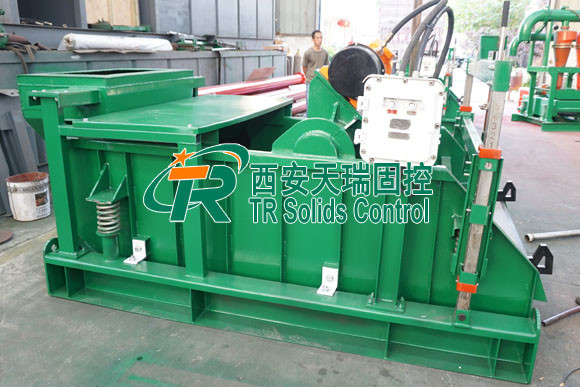

Petroleum Solid Control System Drilling Fluids Shale Shaker Linear Motion
Main Introduction
Drilling shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. Solids Control can design double shakers and triplicate shakerson single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation,we provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.
Mud Shale Shake is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75um brought from the drilling well an d the liquid with smaller particles will flow into tanks, then the fluids will flow into next grade solids control equipment to be treated.
Main Traits of Drilling Shale Shaker:
Parameters of Our Drilling Shale Shaker
| Model | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
