Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120 M3/h | Motor Power: | 1.5kw*2 |
|---|---|---|---|
| Screen Area: | 2.6 M2 | Double Amplitude: | 6mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (750*1250mm)*3pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 1620 Kg |
| Highlight: | API Industrial Shaker Screen,Linear Motion Drilling Rigs Shale Shaker,Drilling Shale Shaker 120 M3/H |
||

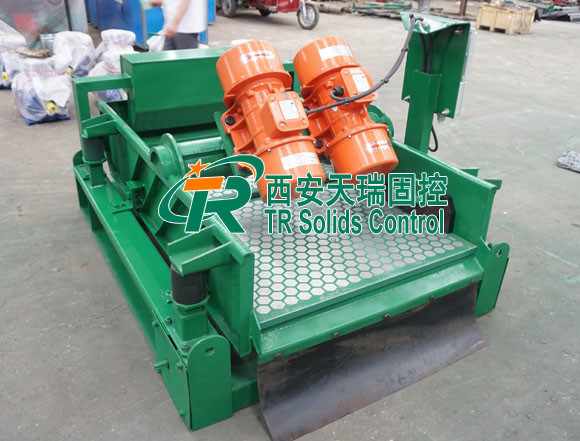

Linear Motion Drilling Rigs Shale Shaker 120 M3/H Capacity Api Standard
Product Introduction
Shale Shaker is an ideal and effective solid control equipment for high-capacity treating in the heavy loading and tough drilling conditions , its easy to maintain, the single side screens tension system make it easy to change the screens. The AWD system could change the angle of shaker deack from -1°~5°,it can remove cuttings above 75μm brought from the drilling.
Our shale shaker is composed of feeding tank, base, screening box, and vibrating motor etc. Six isolation springs sustain the screening box on the base. Three same or different mesh screens are installed on the screening box working surface.
TR Solids Control can manufacture balanced elliptical shale shaker, high quality liner shale shaker, and drying shale shaker. We could meet customers' variable requirements. Clients feedback proves the advantages of our shale shaker in the international market. Welcome to contact with us for more details.
Main Features of Mud Shale Shaker:
Technical Specifications of Our Mud Shale Shaker
| Model | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
