Product Details:
Payment & Shipping Terms:
|
| Capacity: | 130m³/h | Motor Power: | 1.72kw*2 |
|---|---|---|---|
| Screen Area: | 2.7㎡ | Double Amplitude: | 6mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (585*1165mm)*4pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 1600kg |
| Highlight: | Onshore Industrial Shale Screen,Drilling Fluids Linear Motion Shale Shaker,Offshore Industrial Shaker Screen |
||

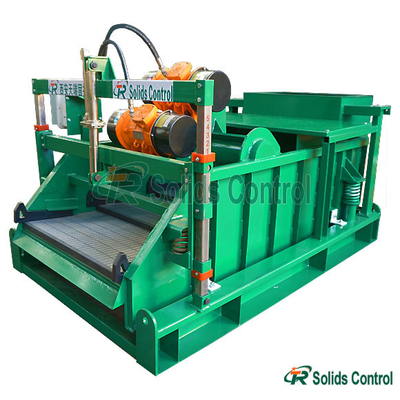

Petroleum Drilling Fluids Processing Onshore Offshore Industrial Shale Shaker
Introduction
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system. The shale shaker sreens the drilling fluid with great amount cuttings, separates the large-size solid particles, and sent the drilling fluid to the next seperating equipments.Our shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
TR shale shaker absorbed advanced tech at home and abroad, complete series shale shaker can meet customers’variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
Key Features of TR Mud Shale Shaker:
Main Parameters of Drilling Shale Shaker
| Model | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
Application
Mud shale shaker is widely used in tunneling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, Oil Sludge Dewatering Systems, environment protection, micro-tunneling, mining, Oil Mud Seperation, Coal Bed Gas Solids Control System, Water Drilling etc. Our shale shaker has exported to many countries like Egypt, USA, Canada, Thailand, Poland, Australia, UAE, South Africa and so on.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
