Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60m3/h | Motor Power: | 0.75kw*2 |
|---|---|---|---|
| Screen Area: | 1.4m2 | Double Amplitude: | 5mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Linear Motion |
| Screen Specs.: | (750*900mm)*2pcs | Vibration Strength: | ≤7.1G(Adjustabe) |
| Adjustment Angle: | -1°-+5° | Weight: | 900kg |
| Highlight: | Large Capacity Linear Motion Shale Shaker,Linear Motion Oilfield Shale Shaker |
||

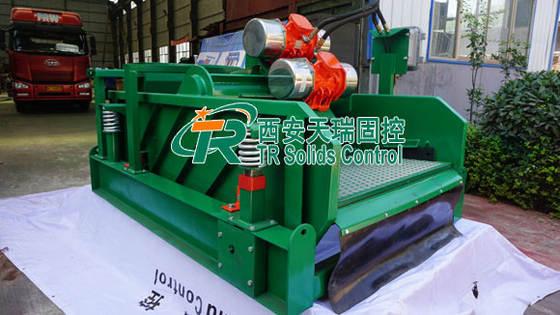

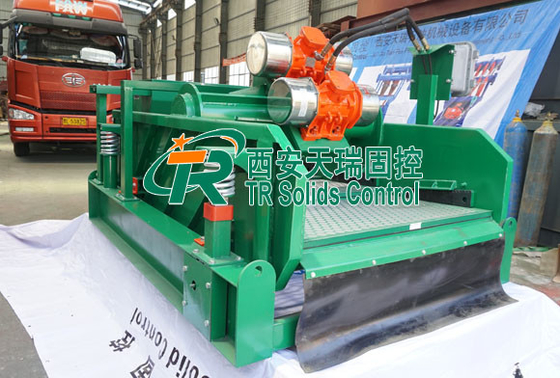

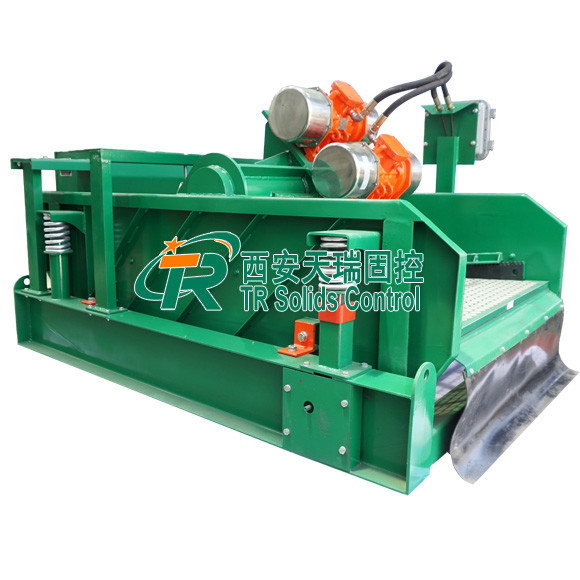

Drilling Solids Control Linear Type Shale Shaker for Sale / Large Capacity Mud Shale Shaker
Introduction
TR Solids Control can design both double shale shaker and triplicate shale shaker based on clients’ special demands. We also supply relevant connecting manifolds. Jn addition, our shale shaker can be used as underflow vibrating screen of mud cleaner. TR shale shaker has advantages of high vibration intensity, adjustable screen angle, large screening area, compact structure, high performance and cost-effective. We are a professional designer and manufacturer in drilling shale shaker.
TR shale shaker draws on the design experience and advanced technology at home and abroad. We use imported vibration motor. It is used widely in mud recovery system of HDD trenchless, shield & bored pile, oil & gas drilling currently.
Benefits of TR drilling shale shaker
Technical Specification of Our Shale Shaker
| (Model) | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. | |||
Application
TR shale shaker is currently used in tunneling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, micro-tunneling, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
