High-Efficiency Vacuum Degasser for Drilling Fluids | ≥95% Degassing, Self-Contained, Water Ring Pump, Adjustable Vacuum, API Certified – TR SolidsControl
Product Description

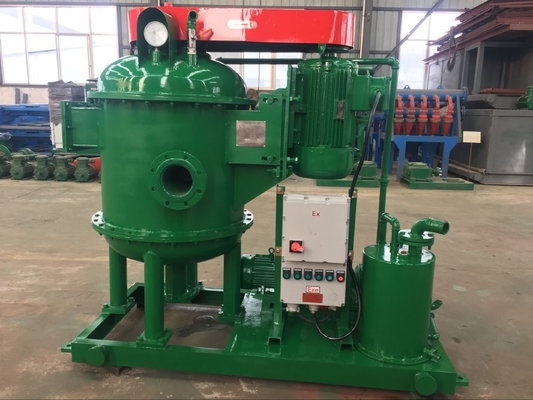

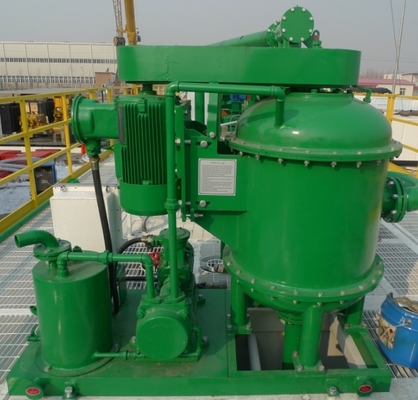

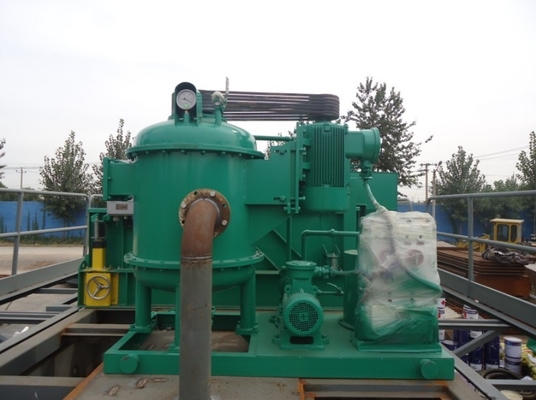

The TRZCQ Series Vacuum Degasser is a specialized device for gas removal in drilling fluids. Designed to quickly eliminate invasive gases, it stabilizes mud weight, maintains viscosity, and reduces drilling costs. Unlike traditional degassers, our self-contained unit uses a regenerative vacuum system and level sensors to protect against over-suction. Installed after shale shakers, it efficiently removes gases from gas-cut mud—thereby preventing potential blowouts and ensuring smooth exhaust flow.
Attributes
Model: TRZCQ Series (e.g., TRZCQ240, TRZCQ270, TRZCQ300, TRZCQ360)
Working Pressure: 0.25–0.4 MPa
Capacity: 240–360 m³/h
Vacuum Degree: -0.030 to -0.045/ -0.050 MPa
Transmission Ratio: 1.68–1.72
Motor Power: 15–37 kW
Vacuum Pump Power: 2.2–7.5 kW
Impeller Speed: 860–880 r/min
Dimensions: Varies by model (e.g., 1750×860×1500 mm to 2400×1500×1850 mm)
Weight: 1100–1800 kg
Technical Specifications
| Model | Capacity | Body Diameter | Vacuum Degree | Transmission Ratio | Motor Power | Vacuum Pump Power | Impeller Speed | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| TRZCQ240 | 240 m³/h | 700 mm | -0.030 to -0.045 MPa | 1.68 | 15 kW | 2.2 kW | 860 r/min | 1750×860×1500 | 1100 kg |
| TRZCQ270 | 270 m³/h | 800 mm | -0.030 to -0.050 MPa | 1.68 | 22 kW | 3 kW | 870 r/min | 2000×1000×1670 | 1350 kg |
| TRZCQ300 | 300 m³/h | 900 mm | -0.030 to -0.045 MPa | 1.68 | 30 kW | 4 kW | 876 r/min | 2250×1330×1650 | 1650 kg |
| TRZCQ360 | 360 m³/h | 1000 mm | -0.030 to -0.045 MPa | 1.72 | 37 kW | 7.5 kW | 880 r/min | 2400×1500×1850 | 1800 kg |
Key Features
Applications
Certifications
API & ISO 9001 Certified – Meets international quality and safety standards.
Explosion-Proof – Engineered for safe operation in hazardous environments.
FAQ
Q: What is the primary function of the vacuum degasser?
A: It removes gases from drilling fluids, stabilizing mud weight and viscosity while reducing blowout risk.
Q: How does the self-contained design benefit operations?
A: It uses a regenerative vacuum system with level sensors, eliminating the need for an external centrifugal pump and preventing over-suction.
Q: What maintenance is required?
A: Regular inspection and cleaning of the vacuum pump and impeller, along with periodic monitoring of vacuum levels, ensure optimal performance.
